Product Summary

The IRG4BC30FDPBF is an insulated gate bipolar transistor with ultrafast soft recovery diode.

Parametrics

IRG4BC30FDPBF absolute maximum ratings: (1)collector-to-emitter voltage: 600 V; (2)continuous collector current: 31 A; (3)pulsed collector current: 124 A; (4)clamped inductive load current: 124 A; (5)diode continuous forward current: 12 A; (6)diode maximum forward current: 120 A; (7)gate-to-emitter voltage: ±20 V; (8)maximum power dissipation: 100 W; (9)operating junction and storage temperature range: -55 to +150 ℃.

Features

IRG4BC30FDPBF features: (1)Fast: Optimized for medium operating frequencies (1-5 kHz in hard switching, >20kHz in resonant mode); (2)Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3; (3)IGBT co-packaged with HEXFREDTM ultrafast, ultra-soft-recovery anti-parallel diodes for use in bridge configurations; (4)Industry standard TO-220AB package; (5)Lead-Free.

Diagrams

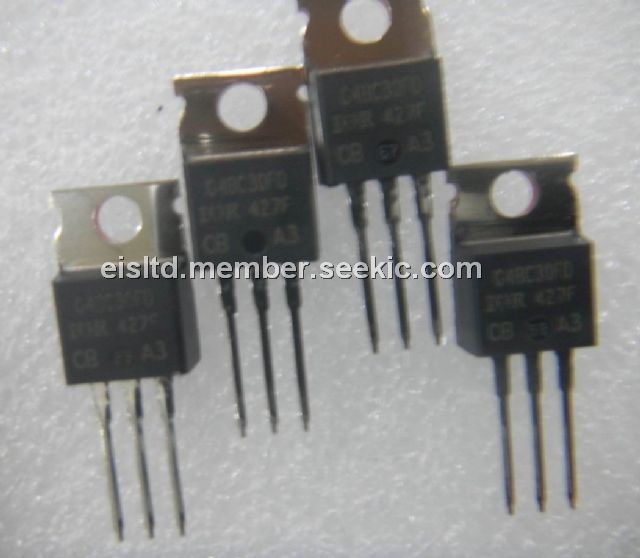

IRG4BC30FDPBF diagram
