Product Summary
The LCP02-150B1RL is a protection IC. The LCP02-150B1RL has been developed to protect SLICs operating on both negative and positive battery supplies, as well as on high voltage SLICs. It provides crowbar mode protection for both TIP and RING lines. The surge suppression is assumed for each wire by two thyristor structures, one dedicated to positive surges the second one for negative surges. Both positive and negative threshold levels are programmable by two gates (Gn and Gp). The use of transistors decreases the battery currents during surge suppression. The LCP02-150B1RL has high Bellcore Core, ITU-T and FCC Part 68 lightning surge ratings, ensuring rugged performance in the field. In addition, it is also specified to assist a designer to comply with UL1950, IEC950 and CSA C22.2. It is UL 497B approved (file E136224), and has UL94-V0 resin approved.
Parametrics
LCP02-150B1RL absolute maximum ratings: (1) VGN max Maximum negative battery voltage range See fig.1: －110 to 0V; (2) VGP max Maximum positive battery voltage range: 0 to +95V; (3) Vbat max Total battery supply voltage See fig.1: 190V; (4) Top Operating temperature range (see note 1): －20 to +85 °C; (5) Tstg Storage temperature range: － 55 to + 150 °C; (6) TL Lead solder temperature (10s duration): 260 °C; (7) IPP Peak pulse current 10/1000ms: 30A; (8) ITSM Non repetitive surge peak on－state current(F = 50Hz)tp = 0.2 s: 5.5A.
Features
LCP02-150B1RL features: (1) Protection IC recommended for ringing SLICs; (2) Wide firing voltage range: from -110V to +95V; (3) Low gate triggering current: IG = 5mA max; (4) Peak pulse current: IPP = 30A (10/1000μs) ; (5) Holding current: IH = 150mA min; (6) UL497B approved (file E136224).

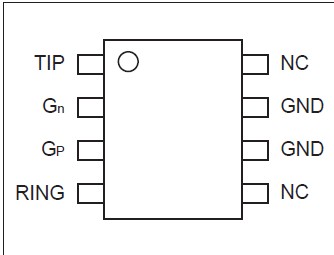

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LCP02-150B1RL |
STMicroelectronics |
ESD Suppressors Protection SLICS |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
LCP02-150B1 |
STMicroelectronics |
Switching Converters, Regulators & Controllers Protection SLICS |
Data Sheet |
Negotiable |
|
||||||||||||
|
LCP02-150B1RL |
STMicroelectronics |
ESD Suppressors Protection SLICS |
Data Sheet |
|
|
||||||||||||
|
LCP02-150M |
STMicroelectronics |
TVS Diode Arrays Programmable TVS |
Data Sheet |
Negotiable |
|
||||||||||||
|
LCP02-150M-TR |
STMicroelectronics |
TVS Diode Arrays Programmable TVS |
Data Sheet |
Negotiable |
|
||||||||||||
