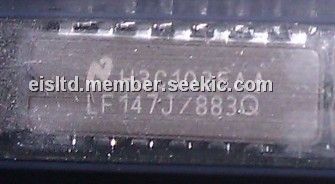

LF147J/883Q

LF147J/883Q, JFER input operational amplifier, DIP-14, 22V, 11mA, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.00~10.00

PartNumber:: LF147J/883Q

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-19

From Other Seller

Part Number:LF147J/883Q
US $3.00 - 10.00
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LF147J/883Q is a low cost, high speed quad JFET input operational amplifier with an internally trimmed input offset voltage (BI-FET II[TM] technology). The device requires a low supply current and yet maintains a large gain bandwidth product and a fast slew rate. In addition, well matched high voltage JFET input device provides very low input bias and offset currents. The LF147J/883Q is pin compatible with the standard LM148. This feature allows designers to immediately upgrade the overall performance of existing LF148 and LM124 designs. The LF147J/883Q may be used in applications such as high speed integrators, fast D/A converters, sample-and-hold circuits and many other circuits requiring low input bias current, high input impedance, high slew rate and wide bandwidth. The LF147J/883Q has low noise and offset voltage drift.

Parametrics

LF147J/883Q absolute maximum ratings: (1)Supply Voltage: +22V; (2)Differential Input Voltage: +38V; (3)Input Voltage Range: +19V; (4)Output Short Circuit Duration: Continuous; (5)Power Dissipation: 900mW; (6)Tj Max: 150℃; (7)ThetaJa Ceramic DIP (J) Package: 70℃/W; (8)Operating Temperature Range: -55℃ < Ta < 125℃; (9)Storage Temperature Range: -65℃ < Ta < 150℃; (10)Lead Temperature (Soldering, 10 seconds): 260℃; (11)Soldering Information Dual-In-Line Package (Soldering, 10 seconds): 260℃; (12)ESD Tolerance: 900V.

Features

LF147J/883Q features: (1)Internally trimmed offset voltage: 5mV Max; (2)Low input bias current: 50pA Typ; (3)Low input noise current: 0.01pA/Root Hz Typ; (4)Wide gain bandwidth: 4MHz Typ; (5)High slew rate: 13V/uS Typ; (6)Low supply current: 7.2mA Typ; (7)High input impedance: 10E12 Ohms Typ; (8)Low total harmonic distortion Av=10, RL = 10K, Vo = 20Vp-p, BW = 20Hz - 20KHz: <0.02% Typ; (9)Low 1/f noise corner: 50Hz Typ; (10)Fast settling time to 0.01%: 2uS Typ.
