Product Summary

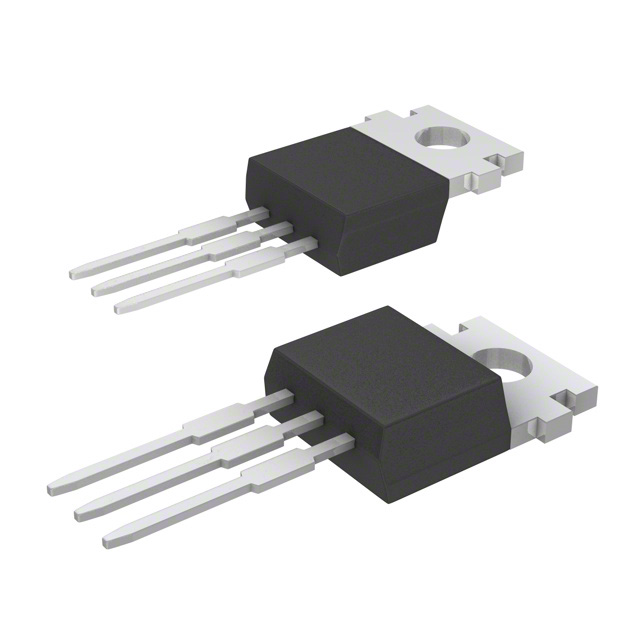

The LM1117T-ADJ is a low dropout voltage regulator with a dropout of 1.2V at 800mA of load current. The LM1117T-ADJ has the same pin-out as National Semiconductor’s industry standard LM317. The LM1117T-ADJ is available in an adjustable version, which can set the output voltage from 1.25V to 13.8V with only two external resistors. In addition, the LM1117T-ADJ is also available in five fixed voltages, 1.8V, 2.5V, 2.85V, 3.3V, and 5V. The LM1117T-ADJ offers current limiting and thermal shutdown. Its circuit includes a zener trimmed bandgap reference to assure output voltage accuracy to within ±1%. The LM1117T-ADJ is available in LLP, TO-263, SOT-223, TO-220, and TO-252 D PAK packages. A minimum of 10μF tantalum capacitor is required at the output to improve the transient response and stability.
Parametrics
LM1117T-ADJ absolute maximum ratings: (1)Maximum Input Voltage (VIN to GND): 20V; (2)Power Dissipation: Internally Limited; (3)Junction Temperature (TJ): 150℃; (4)Storage Temperature Range: -65℃ to 150℃; (5)Lead Temperature: 260℃, 10 sec.
Features
LM1117T-ADJ features: (1)Available in 1.8V, 2.5V, 2.85V, 3.3V, 5V, and Adjustable Versions; (2)Space Saving SOT-223 and LLP Packages; (3)Current Limiting and Thermal Protection; (4)Output Current 800mA; (5)Line Regulation 0.2% (Max); (6)Load Regulation 0.4% (Max); (7)Temperature Range: 0℃ to 125℃.

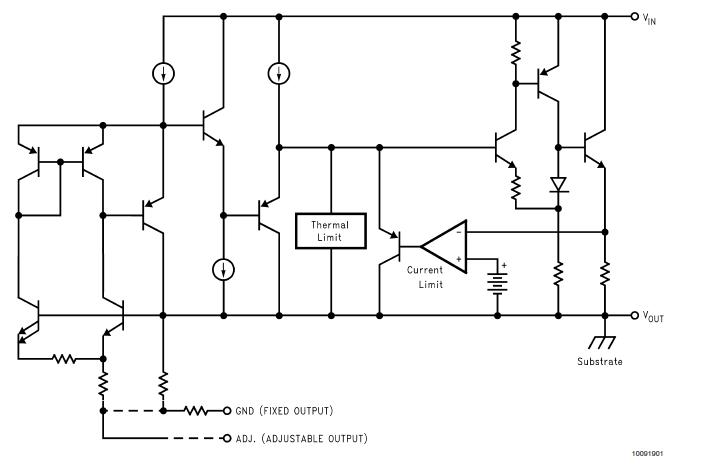

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM1117T-ADJ |
National Semiconductor (TI) |
Low Dropout (LDO) Regulators |
Data Sheet |
|
|
||||||||||||
|
LM1117T-ADJ/NOPB |
National Semiconductor (TI) |
Low Dropout (LDO) Regulators |
Data Sheet |
|
|
||||||||||||
