Product Summary
The LM2931CDR2G is a positive fixed and adjustable output voltage regulator that are specifically designed to maintain proper regulation with an extremely low input−to−output voltage differential. The LM2931CDR2G is capable of supplying output currents in excess of 100 mA and feature a low bias current of 0.4 mA at 10 mA output. Designed primarily to survive in the harsh automotive environment, the LM2931CDR2G will protect all external load circuitry from input fault conditions caused by reverse battery connection, two battery jump starts, and excessive line transients during load dump. This series also includes internal current limiting, thermal shutdown, and additionally, is able to withstand temporary power−up with mirror−image insertion.
Parametrics
LM2931CDR2G absolute maximum ratings: (1)Input Voltage Continuous VI: 40 Vdc; (2)Transient Input Voltage VI: 60 Vpk; (3)Transient Reverse Polarity Input Voltage −VI: −50Vpk; (4)Operating Ambient Temperature Range TA: −40 to +125 °C; (5)Operating Die Junction Temperature TJ: +150 °C; (6)Storage Temperature Range Tstg: −65 to +150 °C; (7)Ripple Rejection (f = 120 Hz)RR: 60 to 90dB.
Features
LM2931CDR2G features: (1)Input−to−Output Voltage Differential of < 0.6 V @ 100 mA; (2)Output Current in Excess of 100 mA; (3)Low Bias Current; (4)60 V Load Dump Protection; (5)−50 V Reverse Transient Protection; (6)Internal Current Limiting with Thermal Shutdown; (7)Temporary Mirror−Image Protection; (8)Ideally Suited for Battery Powered Equipment; (9)Economical 5−Lead TO−220 Package with Two Optional Leadforms; (10)Available in Surface Mount SOP−8, D2PAK and DPAK Packages; (11)High Accuracy (±2.5%)Reference (LM2931AC)Available; (12)Pb−Free Packages are Available.

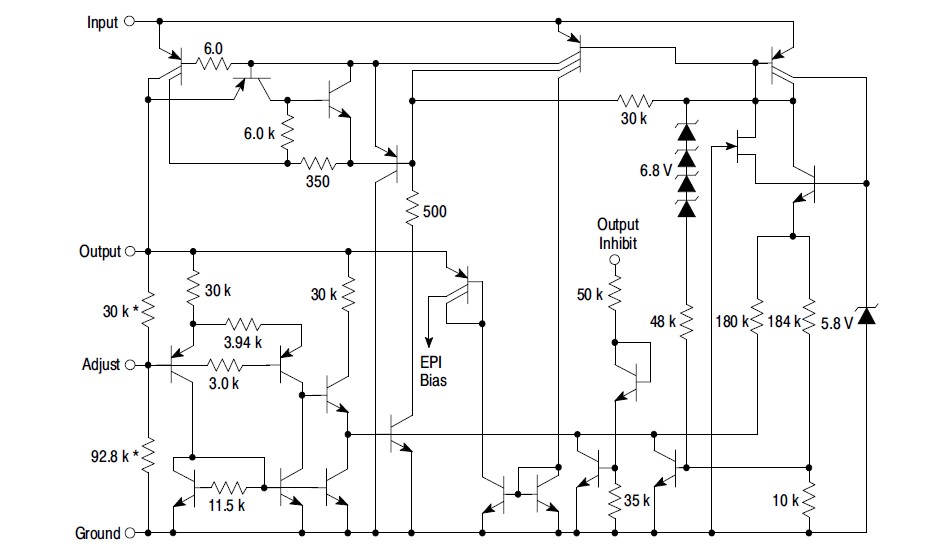

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM2931CDR2G |
ON Semiconductor |
Low Dropout (LDO) Regulators 3-24V ADJ 100mA w/Load Dump |
Data Sheet |
|
|
||||||||||||
