Product Summary
The LM348M is a true quad 741. The LM348M is an independent, high gain, internally compensated, low power operational amplifier which have been designed to provide functional characteristics identical to those of the familiar 741 operational amplifier. In addition the total supply current for all four amplifiers is comparable to the supply current of a single 741 type op amp. Other features include input offset currents and input bias current which are much less than those of a standard 741. Also, excellent isolation between amplifiers has been achieved by independently biasing each amplifier and using layout techniques which minimize thermal coupling. The LM348M can be used anywhere multiple 741 or 1558 type amplifiers are being used and in applications where amplifier matching or high packing density is required. For lower power refer to LF444.
Parametrics
LM348M absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Differential Input Voltage: ±36V; (3)Output Short Circuit Duration: Continuous Continuous Continuous; (4)Power Dissipation (Pd at 25℃): 750 mW; (5)Maximum Junction Temperature (TjMAX): 100℃; (6)Operating Temperature Range: 0℃ ≤ TA ≤ +70℃; (7)Storage Temperature Range: −65℃ to +150℃; (8)Input Offset Current TA = 25℃: 4 to 50 nA; (9)Input Bias Current TA = 25℃: 30 to 200 nA; (10)Input Resistance TA = 25℃: 0.8 to 2.5 MΩ; (11)Supply Current All Amplifiers TA = 25℃, VS = ±15V: 2.4 to 4.5 mA.
Features
LM348M features: (1)741 op amp operating characteristics; (2)Class AB output stage—no crossover distortion; (3)Picompatible with the LM124; (4)Overload protectiofor inputs and outputs; (5)Low supply current drain: 0.6 mA/Amplifier; (6)Low input offset voltage: 1 mV; (7)Low input offset current: 4 nA; (8)Low input bias current 30 nA; (9)High degree of isolatiobetweeamplifiers: 120 dB; (10)Gaibandwidth product; (11)LM148 (unity gain): 1.0 MHz.

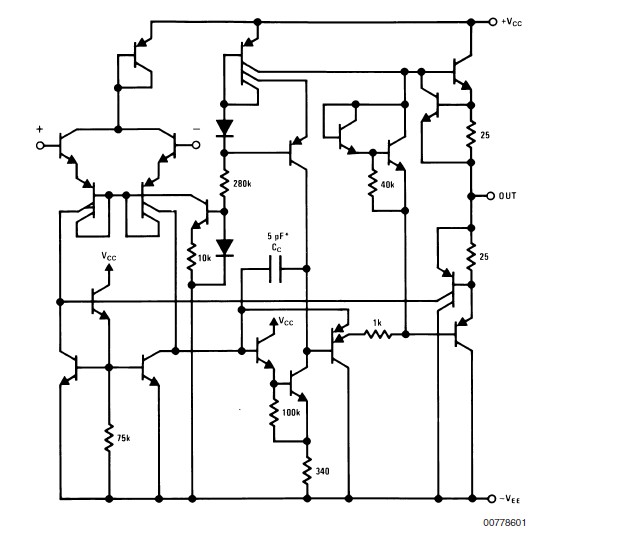

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM348M |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
|
LM348MX |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
|
LM348MX/NOPB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
|
LM348M/NOPB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
