Product Summary
The LM358M is an independent, high gain, internally frequency compensated operational amplifier which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. Application areas of the LM358M include transducer amplifiers, dc gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems. For example, the LM358M can be directly operated off of the standard +5V power supply voltage which is used in digital systems and will easily provide the required interface electronics without requiring the additional ±15V power supplies.
Parametrics
LM358M absolute maximum ratings: (1)Supply Voltage, V+: 32V; (2)Differential Input Voltage: 32V; (3)Input Voltage: −0.3V to +32V; (4)Power Dissipation Molded DIP: 830 mW; (5)Input Current (VIN < −0.3V): 50 mA; (6)Operating Temperature Range: 0℃ to +70℃; (7)Storage Temperature Range: −65℃ to +150℃.
Features
LM358M features: (1)Available i8-Bump micro SMD chip sized package, (See AN-1112); (2)Internally frequency compensated for unity gain; (3)Large dc voltage gain: 100 dB; (4)Wide bandwidth (unity gain): 1 MHz (temperature compensated); (5)Wide power supply range: Single supply: 3V to 32V, or dual supplies: ±1.5V to ±16V; (6)Very low supply current drai(500 μA)—essentially independent of supply voltage; (7)Low input offset voltage: 2 mV; (8)Input common-mode voltage range includes ground; (9)Differential input voltage range equal to the power supply voltage; (10)Large output voltage swing.

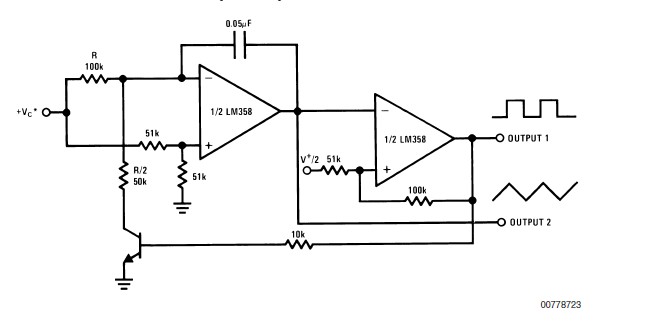

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM358M/NOPB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps LOW PWR DUAL OP AMP |
Data Sheet |
|
|
||||||||||||
|
LM358MX |
Fairchild Semiconductor |
Operational Amplifiers - Op Amps SOP-8 Dual Op Amp |
Data Sheet |
|
|
||||||||||||
|
LM358MX/NOPB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps LOW PWR DUAL OP AMP |
Data Sheet |
|
|
||||||||||||
|
LM358M |
Fairchild Semiconductor |
Operational Amplifiers - Op Amps Dual Operational Amp |
Data Sheet |
|
|
||||||||||||
