Product Summary
The LP2987IM-3.0 is a fixed-output 200 mA precision LDO voltage regulator with power-ON reset delay which can be implemented using a single external capacitor. A single external capacitor connected to the Bypass pin reduces regulator output noise. The applications of the LP2987IM-3.0 include Cellular Phone, Palmtop/Laptop Computer, Camcorder, Personal Stereo, Camera.
Parametrics
LP2987IM-3.0 absolute maximum ratings: (1)Storage Temperature Range: -65℃ to +150℃; (2)Operating Junction Temperature Range: -40℃ to +125℃; (3)Lead Temperature (Soldering, 5 seconds): 260℃; (4)ESD Rating (Note 2): 2 kV; (5)Power Dissipation (Note 3): Internally Limited; (6)Input Supply Voltage (Survival): -0.3V to +16V.
Features
LP2987IM-3.0 features: (1)Ultra low dropout voltage; (2)Power-ON reset delay requires only one component; (3)Bypass pin for reduced output noise (LP2988); (4)Guaranteed continuous output current 200 mA; (5)Guaranteed peak output current > 250 mA; (6)SO-8 and mini SO-8 surface mount packages; (7)<2 μA quiescent current when shutdown; (8)Low ground pin current at all loads; (9)0.5% output voltage accuracy (“A” grade); (10)Wide supply voltage range (16V max); (11)Overtemperature/overcurrent protection; (12)-40℃ to +125℃ junction temperature range.

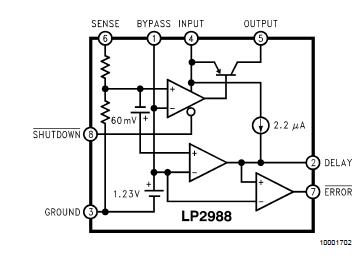

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LP2987IM-3.0 |
National Semiconductor (TI) |
Low Dropout (LDO) Regulators |
Data Sheet |
|
|
||||||||||||
|
LP2987IM-3.0/NOPB |
National Semiconductor (TI) |
Low Dropout (LDO) Regulators |
Data Sheet |
|
|
||||||||||||
