Product Summary
The LT1008S8#TR is a universal precision operational amplifier that can be used in practically all precision applications. The LT1008S8#TR combines for the first time, picoampere bias currents (which are maintained over the full -55℃ to 125℃ temperature range), microvolt offset voltage (and low drift with time and temperature), low voltage and current noise, and low power dissipation. Extremely high common mode and power supply rejection ratios, and the ability to deliver 5mA load current with high voltage gain round out the LT1008S8#TR’s superb precision specifications. The applications of the LT1008S8#TR include Precision Instrumentation, Charge Integrators, Wide Dynamic Range Logarithmic Amplifiers, Light Meters, Low Frequency Active Filters, Standard Cell Buffers, Thermocouple Amplifiers.
Parametrics
LT1008S8#TR absolute maximum ratings: (1)Supply Voltage: ±20V; (2)Differential Input Current: ±10mA; (3)Input Voltage: ±20V; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range: 65℃ to 150℃.
Features
LT1008S8#TR features: (1)Guaranteed Bias Current, TA = 25℃: 100pA Max; TA = -55℃ to 125℃: 600pA Max; (2)Guaranteed Offset Voltage: 120μV Max; (3)Guaranteed Drift: 1.5μV/℃ Max; (4)Low Noise, 0.1Hz to 10Hz: 0.5μVP-P; (5)Guaranteed Low Supply Current: 600μA Max; (6)Guaranteed CMRR: 114dB Min; (7)Guaranteed PSRR: 114dB Min; (8)Guaranteed Voltage Gain with 5mA Load Current; (9)Available in 8-Lead PDIP and SO Packages.

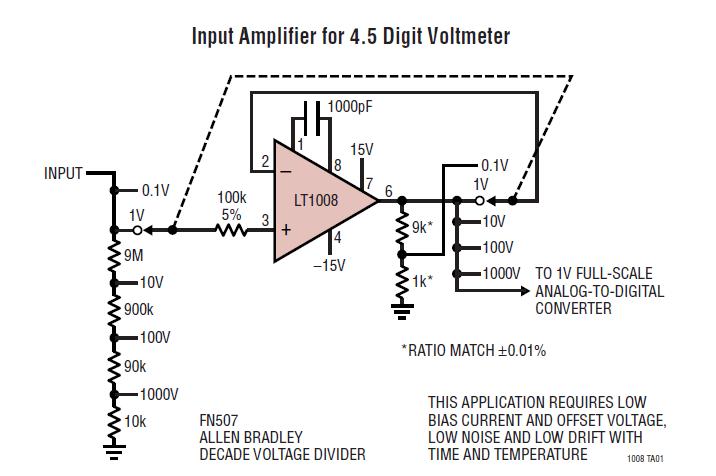

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1008S8#TR |
|
IC OP AMP PREC SGL UNIV LN 8SOIC |
Data Sheet |
|
|
||||||
|
LT1008S8#TRPBF |
|
IC PREC OPAMP UNIVRSL SNGL 8SOIC |
Data Sheet |
|
|
||||||
