Product Summary
The LT1014DSW#TR is a precision quad operational amplifier which directly upgrades designs in the industry standard 14-pin DIP pin configuration. It is no longer necessary to compromise specifications, while saving board space and cost, as compared to single operational amplifiers. The applications of the LT1014DSW#TR include Battery-Powered Precision Instrumentation, Strain Gauge Signal Conditioners, Thermocouple Amplifiers, Instrumentation Amplifiers, 4mA–20mA Current Loop Transmitters, Multiple Limit Threshold Detection, Active Filters and Multiple Gain Blocks.
Parametrics
LT1014DSW#TR absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Differential Input Voltage: ±30V; (3)Input Voltage: Equal to Positive Supply Voltage; 5V Below Negative Supply Voltage; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range; (6)All Grades: –65℃ to 150℃; (7)Lead Temperature (Soldering, 10 sec.): 300℃; (8)Operating Temperature Range: 0℃ to 70℃.
Features
LT1014DSW#TR features: (1)ingle Supply Operation: Input Voltage Range Extends to Ground; Output Swings to Ground while Sinking Current; (2)Pin Compatible to 1458 and 324 with Precision Specs; (3)Guaranteed Offset Voltage: 150μV Max; (4)Guaranteed Low Drift: 2μV/℃ Max; (5)Guaranteed Offset Current: 0.8nA Max; (6)Guaranteed High Gain: 5mA Load Current: 1.5 Million Min; 17mA Load Current: 0.8 Million Min; (7)Guaranteed Low Supply Current: 500μA Max; (8)Low Voltage Noise, 0.1Hz to 10Hz: 0.55μVp-p; (9)Low Current Noise—Better than 0P-07, 0.07pA/Hz.

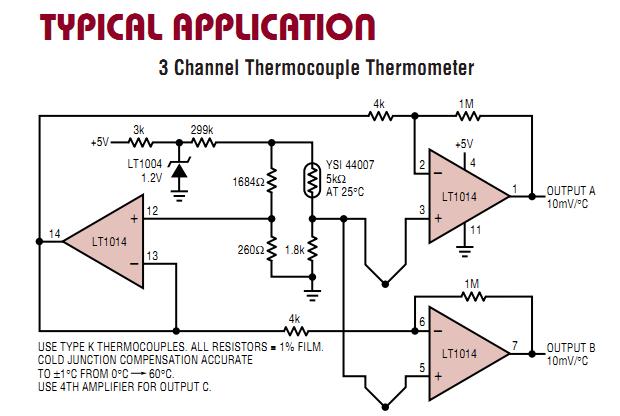

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1014DSW#TR |
|
IC PRECISION OP-AMP QUAD 16-SOIC |
Data Sheet |
|
|
||||||
|
LT1014DSW#TRPBF |
|
IC PRECISION OP-AMP QUAD 16-SOIC |
Data Sheet |
|
|
||||||
