Product Summary
The LT1027ECS8-5#TR is a precision reference with extra-low drift, superior accuracy, excellent line and load regulation and low output impedance at high frequency. This device is intended for use in 12- to 16-bit A-to-D and D-to-A systems where demanding accuracy requirements must be met without the use of power hungry, heated substrate references. The fast settling output recovers quickly from load transients such as those presented by A-to-D converter reference inputs. The LT1027ECS8-5#TR brings together both outstanding accuracy and temperature coefficient specifications. The applications of the LT1027ECS8-5#TR include A-to-D and D-to-A Converters, Digital Voltmeters, Reference Standard, Precision Current Source.
Parametrics
LT1027ECS8-5#TR absolute maximum ratings: (1)Supply Voltage (VIN): 40V; (2)Input-Output Voltage Differential: 35V; (3)Output to Ground Voltage: 7V; (4)VTRIM to Ground Voltage, Positive: 5V; Negative: -0.3V; (5)Output Short-Circuit Duration, VIN > 20V: 10 sec; VIN ≤ 20V: Indefinite; (6)Operating Temperature Range: 0℃ to 70℃; (7)Storage Temperature Range: -65℃ to 150℃; (8)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1027ECS8-5#TR features: (1)Very Low Drift: 2ppm/℃ Max TC; (2)Pin Compatible with LT1021-5, REF-02, (TO-5 and PDIP Packages Only); (3)Output Sources 15mA, Sinks 10mA; (4)Excellent Transient Response Suitable for A-to-D Reference Inputs; (5)Noise Reduction Pin; (6)Excellent Long Term Stability; (7)Less Than 1ppm P-P Noise (0.1Hz to 10Hz).

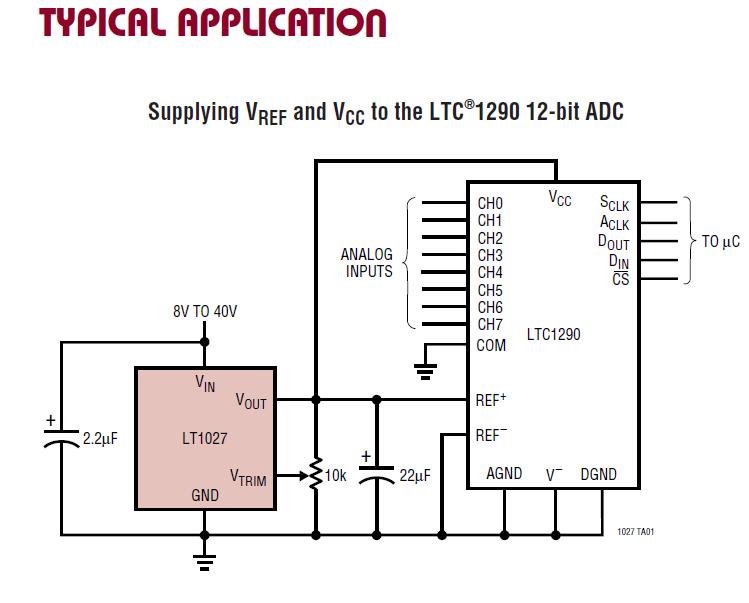

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1027ECS8-5#TR |
|
IC VREF SERIES PREC 5V 8-SOIC |
Data Sheet |
|
|
||||||
|
LT1027ECS8-5#TRPBF |
|
IC VREF SERIES PREC 5V 8-SOIC |
Data Sheet |
|
|
||||||
