Product Summary
The LT1055S8#TR is a JFET input operational amplifier combines precision specifications with high speed performance. For the first time, 16V/μs slew rate and 6.5MHz gain bandwidth product are simultaneously achieved with offset voltage of typically 50μV, 1.2μV/℃ drift, bias currents of 40pA at 70℃ and 500pA at 125℃. The 150μV maximum offset voltage specification is the best available on any JFET input operational amplifier. The applications of the LT1055S8#TR include Precision, High Speed Instrumentation, Logarithmic Amplifiers, D/A Output Amplifiers, Photodiode Amplifiers, Voltage-to-Frequency Converters, Frequency-to-Voltage Converters, Fast, Precision Sample-and-Hold.
Parametrics
LT1055S8#TR absolute maximum ratings: (1)Supply Voltage: ±20V; (2)Differential Input Voltage: ±40V; (3)Input Voltage: ±20V; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range, All Devices: -65℃ to 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1055S8#TR features: (1)Guaranteed Offset Voltage: 150μV Max, -55℃ to 125℃: 500μV Max; (2)Guaranteed Drift: 4μV/℃ Max; (3)Guaranteed Bias Current, 70℃: 150pA Max; 125℃: 2.5nA Max; (4)Guaranteed Slew Rate: 12V/μs Min; (5)Available in 8-Pin PDIP and SO Packages.

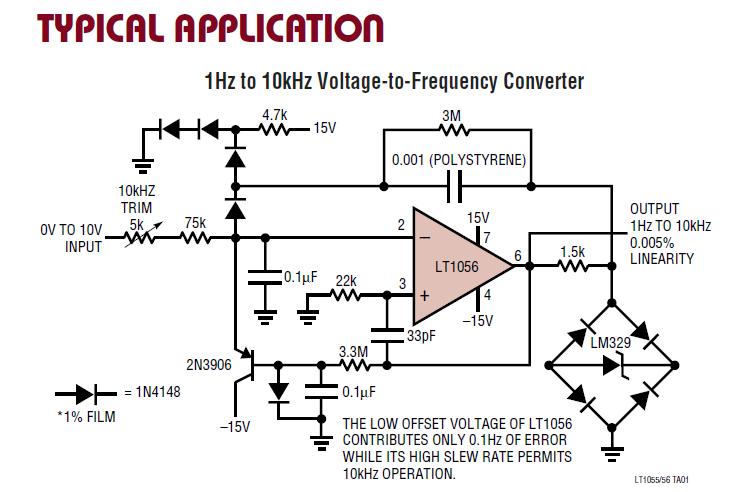

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1055S8#TR |
|
IC OPAMP JFET PREC HI SPD 8SOIC |
Data Sheet |
|
|
||||||
|
LT1055S8#TRPBF |
|
IC PREC OP-AMP JFET HI-SPD 8SOIC |
Data Sheet |
|
|
||||||
