Product Summary
The LT1079SW#TR is a micropower dual op amp in 8-pin packages including the small outline surface mount package. The LT1079SW#TR is a micropower quad op amp offered in the standard 14-pin packages. The device is optimized for single supply operation at 5V. ±15V specifications are also provided. Micropower performance of competing devices is achieved at the expense of seriously degrading precision, noise, speed and output drive specifications. The applications of the LT1079SW#TR include Battery or Solar-Powered Systems Portable Instrumentation Remote Sensor Amplifier Satellite Circuitry, Micropower Sample-and-Hold, Thermocouple Amplifier, Micropower Filters.
Parametrics
LT1079SW#TR absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Differential Input Voltage: ±30V; (3)Input Voltage: Equal to Positive Supply Voltage; 5V Below Negative Supply Voltage; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range, All Grade: -65℃ to 150℃.
Features
LT1079SW#TR features: (1)Available in 8-Pin SO Package; (2)50mA Max Supply Current per Amplifier; (3)70mV Max Offset Voltage; (4)180mA Max Offset Voltage in 8-Pin SO; (5)250pA Max Offset Current; (6)0.6mVP-P, 0.1Hz to 10Hz Voltage Noise; (7)3pAP-P, 0.1Hz to 10Hz Current Noise; (8)0.4mV/℃ Offset Voltage Drift; (9)200kHz Gain Bandwidth Product; (10)0.07V/ms Slew Rate; (11)Single Supply Operation Input Voltage Range Includes Ground Output Swings to Ground while Sinking Current No Pull-Down Resistors Needed; (12)Output Sources and Sinks 5mA Load Current.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1079SW#TR |
|

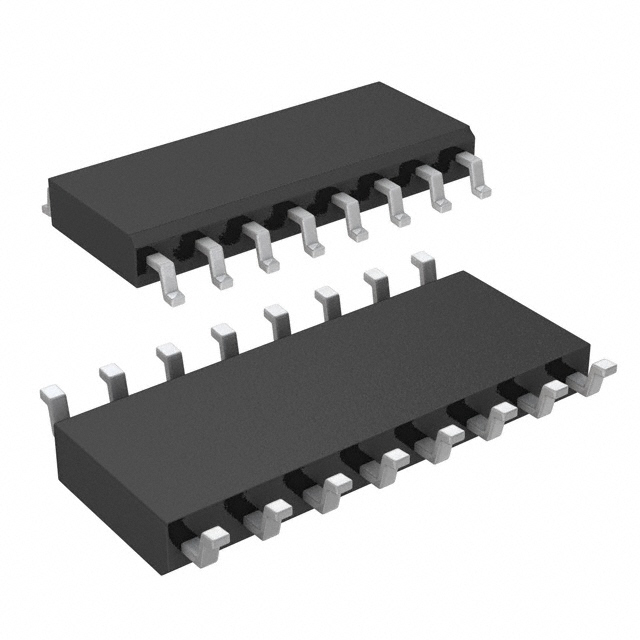

IC OPAMP PREC QUAD MCRPWR 16SOIC |
Data Sheet |
|
|
||||||
|
LT1079SW#TRPBF |
|
IC PREC OP-AMP MCRPWR QUAD16SOIC |
Data Sheet |
|
|
||||||
