Product Summary
The LT1086CT is a low dropout positive regulator. The LT1086CT is designed to provide up to 1.5A output current. All internal circuitry is designed to operate down to 1V input-to-output differential and the dropout voltage is fully specified as a function of load current. Current limit is also trimmed, minimizing the stress on both the regulator and power source circuitry under overload conditions. The LT1086CT is pin compatible with older 3-terminal adjustable regulators. A minimum 10mF output capacitor is required on these devices.
Parametrics
LT1086CT absolute maximum ratings: (1)Power Dissipation: Internally Limited; (2)Input Voltage: 30V; (3)Operating Input Voltage: 25V; (4)Operating Junction Temperature Range: 0℃ to 125℃; (5)Storage Temperature Range: - 65℃ to 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1086CT features: (1)3-Terminal Adjustable or Fixed 2.85V, 3.3V, 3.6V, 5V, 12V; (2)Output Current of 1.5A (0.5A for LT1086H); (3)Operates Dowto 1V Dropout; (4)Guaranteed Dropout Voltage at Multiple Current Levels; (5)Line Regulation: 0.015%; (6)Load Regulation: 0.1%; (7)100% Thermal Limit Functional Test; (8)Ripple Rejectio>75dB; (9)Available i3-PiTO-220 and 3-PiDD Packages.

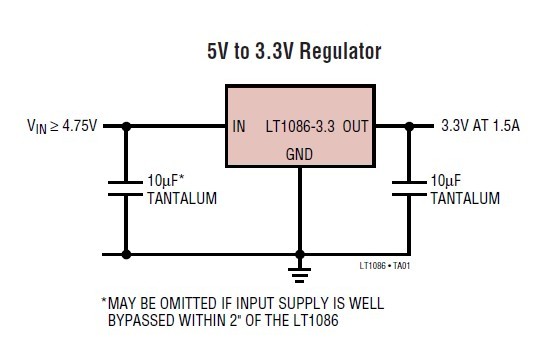

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1086CT |
|

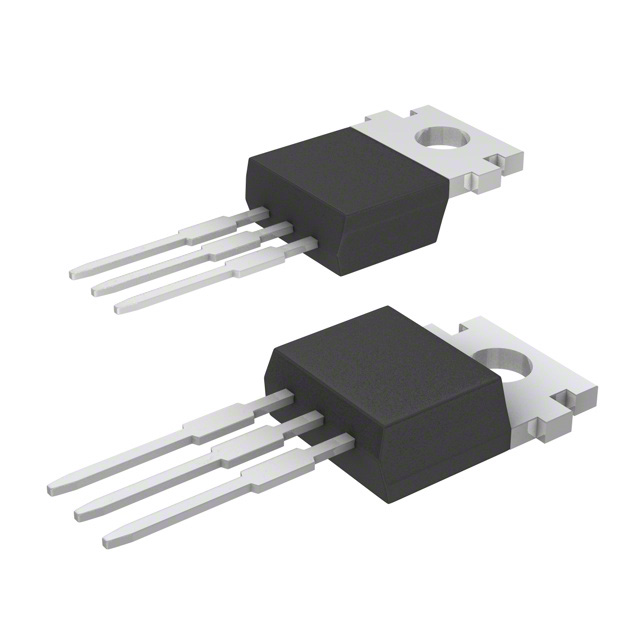

IC REG LDO ADJ 1.5A TO220-3 |
Data Sheet |
|
|
||||||||||
|
LT1086CT#PBF |
|
IC REG LDO ADJ 1.5A TO220-3 |
Data Sheet |
|
|
||||||||||
|
LT1086CT-12#PBF |
|
IC REG LDO 12V 1.5A TO220-3 |
Data Sheet |
|
|
||||||||||
|
LT1086CT-12 |
|
IC REG LDO 12V 1.5A TO220-3 |
Data Sheet |
|
|
||||||||||
|
LT1086CT-2.85#PBF |
|
IC REG LDO 2.85V 1.5A TO220-3 |
Data Sheet |
|
|
||||||||||
|
LT1086CT-2.85 |
|
IC REG LDO 2.85V 1.5A TO220-3 |
Data Sheet |
|
|
||||||||||
|
LT1086CT-3.3#PBF |
|
IC REG LDO 3.3V 1.5A TO220-3 |
Data Sheet |
|
|
||||||||||
|
LT1086CT-3.3 |
|
IC REG LDO 3.3V 1.5A TO220-3 |
Data Sheet |
|
|
||||||||||
