Product Summary
The LT1097S8#TR is a Low Cost, Low Power Precision Op Amp. The LT1097S8#TR achieves a new standard in combining low price and outstanding precision performance. On all operational amplifier data sheets, the specifications listed on the front page are for highly selected, expensive grades, while the specs for the low cost grades are buried deep in the data sheet. The applications of the LT1097S8#TR include Replaces OP-07/OP-77/OP-97/OP-177/AD707/LT1001 with Improved Price/Performance, High Impedance Difference Amplifiers, Logarithmic Amplifiers (Wide Dynamic Range), Thermocouple Amplifiers, Precision Instrumentation, Active Filters (with Small Capacitors).
Parametrics
LT1097S8#TR absolute maximum ratings: (1)Supply Voltage: ±20V; (2)Differential Input Current: ±10mA; (3)Input Voltage: ±20V; (4)Output Short Circuit Duration: Indefinite; (5)Operating Temperature Range: -40℃ to 85℃; (6)Storage Temperature Range: -65℃ to 150℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1097S8#TR features: (1)Offset Voltage: 50mV Max; (2)Offset Voltage Drift: 1mV/℃ Max; (3)Bias Current: 250pA Max; (4)Offset Current: 250pA Max; (5)Bias and Offset Current Drift: 4pA/℃ Max; (6)Supply Current: 560mA Max; (7)0.1Hz to 10Hz Noise: 0.5mVp-p, 2.2pAp-p; (8)CMRR: 115dB Min; (9)Voltage Gain: 117dB Min; (10)PSRR: 114dB Min; (11)Guaranteed Operation on Two NiCad Batteries.

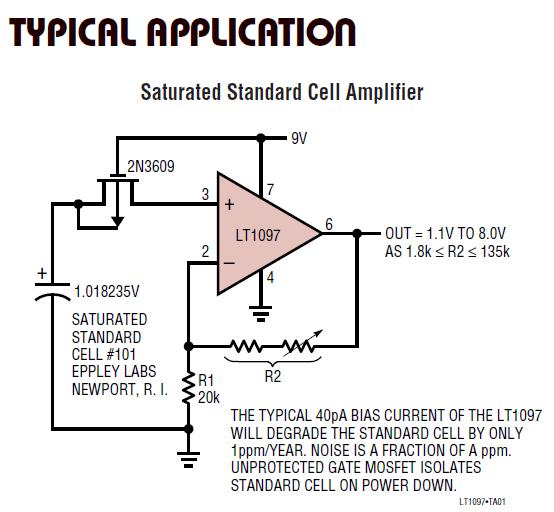

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1097S8#TR |
|
IC PREC OP-AMP LOWCOST/PWR 8SOIC |
Data Sheet |
|
|
||||||
|
LT1097S8#TRPBF |
|
IC PREC OP-AMP LOWCOST/PWR 8SOIC |
Data Sheet |
|
|
||||||
