Product Summary
The LT1114S is a quad Low Power Precision, Picoamp Input Op Amp achieves a new standard in combining low cost and outstanding precision specifications. The performance of the selected prime grades matches or exceeds competitive devices. In the design of the LT1114S however, particular emphasis has been placed on optimizing performance in the low cost plastic and SO packages. The applications of the LT1114S include Picoampere/Microvolt Instrumentation, Two and Three Op Amp Instrumentation Amplifers, Thermocouple and Bridge Amplifiers, Low Frequency Active Filters, Photo Current Amplifiers, Battery-Powered Systems.
Parametrics
LT1114S absolute maximum ratings: (1)Supply Voltage: ±20V; (2)Differential Input Current: ±10mA; (3)Input Voltage (Equal to Supply Voltage): ±20V; (4)Output Short-Circuit Duration: Indefinite; (5)Storage Temperature Range: -65℃ to 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1114S features: (1)S8 Package – Standard Pinout; (2)Offset Voltage – Prime Grade: 60mV Max; (3)Offset Voltage – Low Cost Grade (Including Surface Mount Dual/Quad): 75mV Max; (4)Offset Voltage Drift: 0.5mV/°C Max; (5)Input Bias Current: 250pA Max; (6)0.1Hz to 10Hz Noise: 0.3mVP-P, 2.2pAP-P; (7)Supply Current per Amplifier: 400mA Max; (8)CMRR: 120dB Min; (9)Voltage Gain: 1 Million Min; (10)Guaranteed Specs with ±1.0V Supplies; (11)Guaranteed Matching Specifications; (12)LT1114 in Narrow Surface Mount Package.

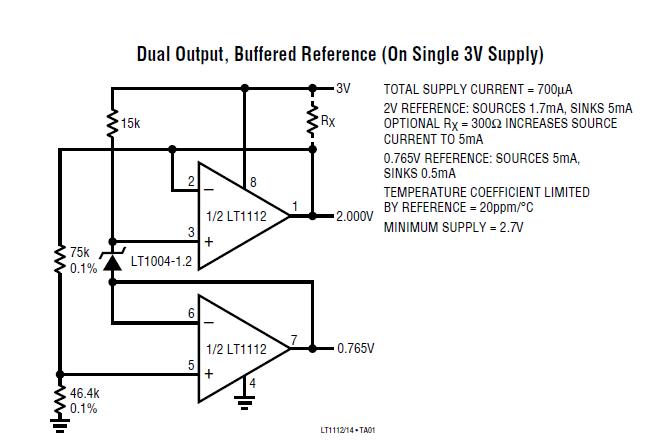

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1114S |
|
IC PREC OP-AMP LOPWR QUAD 16SOIC |
Data Sheet |
|
|
||||||||||
|
LT1114S#PBF |
|
IC PREC OP-AMP LOPWR QUAD 16SOIC |
Data Sheet |
|
|
||||||||||
|
LT1114S#TR |
|
IC OPAMP QUAD PREC LO PWR 16SOIC |
Data Sheet |
|
|
||||||||||
|
LT1114S#TRPBF |
|
IC PREC OP-AMP LOPWR QUAD 16SOIC |
Data Sheet |
|
|
||||||||||
