Product Summary
The LT1118CS8-2.5#TR is a low IQ, low dropout, 800mA, source and sink regulator adjustable and fixed 2.5V, 2.85V, 5V output. The 2.85V output voltage regulator is ideal for use as a Boulay termination of up to 27 SCSI data lines. The regulator maintains regulation while both sourcing and sinking current, enabling the use of active negation drivers for improved noise immunity on the data lines.
Parametrics
LT1118CS8-2.5#TR absolute maximum ratings: (1)supply voltage: 15V; (2)Input voltage: -0.2 to 7V; (3)output voltage: -0.2 to VCC +0.5V; (4)short-circuit duration: indefinite; (5)operating temperature range: 0 to 70℃; (6)storage temperature range: -65 to 150℃; (7)lead temperature: 300℃.
Features
LT1118CS8-2.5#TR features: (1)Regulates While Sourcing or Sinking Current; (2)Provides Termination for up to 27 SCSI Lines; (2)600μA Quiescent Current; (3)Ultralow Power Shutdown Mode; (4)Current Limit and Thermal Shutdown Protection; (5)Stable for Any CLOAD ≥ 0.22μF; (6)Fast Settling Time; (7)1V Dropout Voltage.

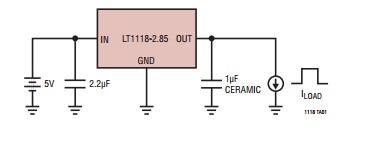

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1118CS8-2.5#TR |
|
IC REG LDO 2.5V .8A 8SOIC |
Data Sheet |
|
|
||||||
|
LT1118CS8-2.5#TRPBF |
|
IC REG LDO 2.5V .8A 8SOIC |
Data Sheet |
|
|
||||||
