LT1121IS8

micropower low dropout regulator, 6.5V, 10mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: LT1121IS8

Brand:: Linear Technology - Linear | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:LT1121IS8
US $0.15 - 2.40
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

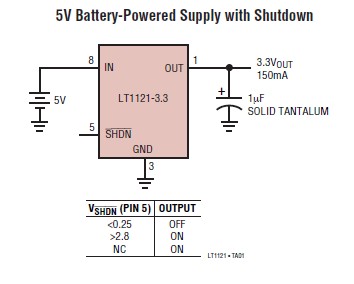

The LT1121IS8 is a micropower low dropout regulator with shutdown. The LT1121IS8 is capable of supplying 150mA of output current with a dropout voltage of 0.4V. Designed for use in battery-powered systems, the low quiescent current, 30uA operating and 16uA in shutdown, makes the LT1121IS8 an ideal choice. The quiescent current is well-controlled; it does not rise in dropout as it does with many other low dropout PNP regulators. The LT1121IS8 applications are: (1)Low Current Regulator; (2)Regulator for Battery Powered Systems; (3)Post Regulator for Switching Supplies.

Parametrics

LT1121IS8 absolute maximum ratings: (1)Output Pin Reverse Current: 10mA; (2)Adjust Pin Current: 10mA; (3)Shutdown Pin Input Voltage (Note 2): 6.5V, － 0.6V; (4)Shutdown Pin Input Current (Note 2): 20mA; (5)Storage Temperature Range: － 65℃ to 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1121IS8 features: (1)150mA Output Current; (2)30uA Quiescent Current; (3)No Protection Diodes Needed; (4)Adjustable Output from 3.75V to 30V; (5)3.3V and 5V Fixed Output Voltages; (6)Controlled Quiescent Current in Dropout; (7)Shutdown; (8)16uA Quiescent Current in Shutdown; (9)Stable with 0.33uF Output Capacitor; (10)Reverse Battery Protection.
