Product Summary
The LT1166CS8#TR is a power output stage automatic bias system. When connected with external transistors, the circuit becomes a unity-gain voltage follower. The LT1166 is ideally suited for driving power MOSFET devices because it eliminates all quiescent current adjustments and critical transistor matching.
Parametrics
LT1166CS8#TR absolute maximum ratings: (1)supply current: 75mA; (2)differential voltage: ±6V; (3)output short-circuit duration: continuous; (4)operating temperature range: -40 to 85℃; (5)junction temperature: 150℃; (6)storage temperature range: -65 to 150℃.
Features
LT1166CS8#TR features: (1)Set Class AB Bias Currents; (2)Eliminates Adjustments; (3)Eliminates Thermal Runaway of IQ; (4)Corrects for Device Mismatch; (5)Simplifies Heat Sinking; (6)Programmable Current Limit; (7)May Be Paralleled for Higher Current; (8)Small SO-8 or PDIP Package.

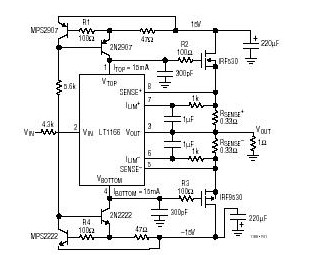

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() LT1166CS8#TR |
![]() |
![]() IC AUTO BIAS SYST PWR OUT 8SOIC |
![]() Data Sheet |
![]()
|
|
||||||
![]() |
![]() LT1166CS8#TRPBF |
![]() |
![]() IC BIAS SYS AUTO PWR-OUTPT 8SOIC |
![]() Data Sheet |
![]()
|
|
