Product Summary
The LT1184CS#TR is a switching regulator.The LT1184CS#TR operates with input; (2)supply voltages from 3V to 30V. The ICs also have a battery supply voltage pin that operates from 4.5V to 30V. The LT1182/LT1183 draw 9mA typical quiescent current while the LT1184CS#TR draw 6mA typical quiescent current. An active low shutdown pin typically reduces total supply current to 35mA for standby operation. A 200kHz switching frequency minimizes the size of required magnetic components. The use of current mode switching techniques with cycle by cycle limiting gives high reliability and simple loop frequency compensation. The LT1184CS#TR is all available in 16 pin narrow SO packages. The LT1184CS#TR applications are: (1)Notebook and Palmtop Computers; (2)Portable Instruments; (3)Automotive Displays; (4)Retail Terminals.
Parametrics
LT1184CS#TR absolute maximum ratings: (1)VIN, BAT, Royer, Bulb: 30V; (2)CCFL VSW, LCD VSW: 60V; (3)Shutdown: 6V; (4)ICCFL Input Current: 10mA; (5)DIO Input Current (Peak, < 100ms): 100mA; (6)LT1182: FBP, FBN, LT1183: FB Pin Current: ±2mA.
Features
LT1184CS#TR features: (1) Wide Input Voltage Range: 3V to 30V; (2) Low Quiescent Current; (3) High Switching Frequency: 200kHz; (4) CCFL Switch: 1.25A, LCD Switch: 625mA; (5) Grounded or Floating Lamp Configurations; (6) Open Lamp Protection; (7) Positive or Negative Contrast Capability.

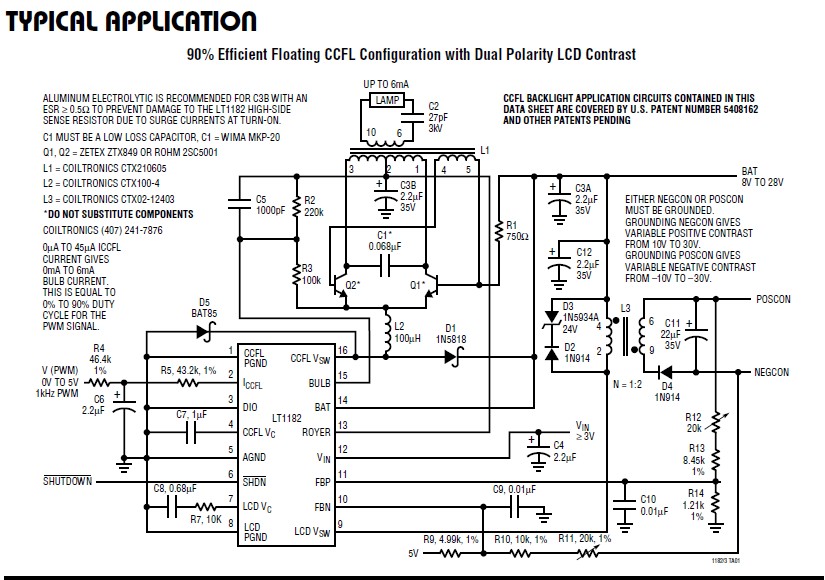

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1184CS#TR |
|
IC REG SWITCH DUAL CCFL 16SOIC |
Data Sheet |
|
|
||||||
|
LT1184CS#TRPBF |
|
IC SW REG CCFL CONTRAST 16-SOIC |
Data Sheet |
|
|
||||||
