Product Summary
The LT1186FCS#TR is a DAC programmable CCFL switching regulator. The IC includes an efficient high current switch, an oscillator, output drive logic, control circuitry and a micropower 8-bit 50µA fullscale current output DAC. The LT1186F control circuitry operates from a logic supply voltage of 3.3V or 5V. The IC also has a battery supply voltage pin that operates from 4.5V to 30V. The LT1186F draws 6mA typical quiescent current.
Parametrics
LT1186FCS#TR absolute maximum ratings: (1)VCC: 7V; (2)CCFL VSW: 60V; (3)DIO input current: 100mA; (4)digital inputs: -0.3 to VCC+0.3V; (5)DAC output voltage: -20 to VCC+0.3V; (6)junction temperature range: 100℃; (7)operating ambient temperature range: 0 to 100℃.
Features
LT1186FCS#TR faetures: (1)Wide Battery Input Range: 4.5V to 30V; (2)Grounded Lamp or Floating Lamp Configurations; (3)Open Lamp Protection; (4)Precision 50µA Full-Scale DAC Programming Current; (5)Standard SPI Mode or Pulse Mode; (6)DAC Setting Is Retained in Shutdown.

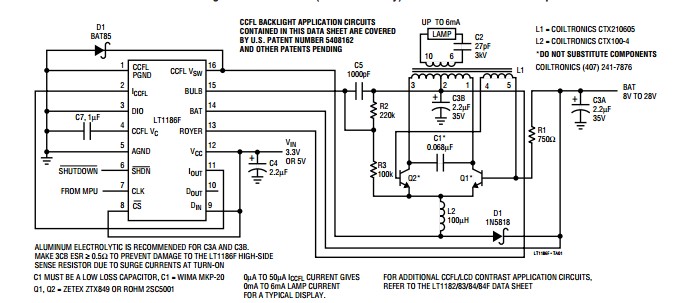

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1186FCS#TR |
|
IC REG SW CCFL DAC PROG 16SOIC |
Data Sheet |
|
|
||||||
|
LT1186FCS#TRPBF |
|
IC SW REG CCFL DAC PROG 16SOIC |
Data Sheet |
|
|
||||||
