Product Summary
The LT1236AIS8-5 is a precision reference that combines ultralow drift and noise with excellent long-term stability and high output accuracy. The LT1236AIS8-5 output will both source and sink up to 10mA and is almost totally immune to input voltage variations. Two voltages are available: 5V and 10V. The 10V version can be used as a shunt regulator (two-terminal zener) with the same precision characteristics as the three-terminal connection. Special care has been taken to minimize thermal regulation effects and temperature induced hysteresis. The applications of the LT1236AIS8-5 include A/D and D/A Converters, Precision Regulators, Precision Scales, Inertial Navigation Systems, Digital Voltmeters.
Parametrics
LT1236AIS8-5 absolute maximum ratings: (1)Input Voltage: 40V; (2)Input/Output Voltage Differential: 35V; (3)Output-to-Ground Voltage (Shunt Mode Current Limit): 10V; (4)Trim Pin-to-Ground Voltage: Positive: Equal to VOUT; Negative: -20V; (5)Output Short-Circuit Duration, VIN = 35V: 10 sec; VIN ≤ 20V: Indefinite; (6)Operating Temperature Range: -40℃ to 85℃; (7)Storage Temperature Range: -65℃ to 150℃; (8)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1236AIS8-5 features: (1)Ultra-Low Drift: 5ppm/℃ Max; (2)Trimmed to High Accuracy: 0.05% Max; (3)Industrial Temperature Range SO Package; (4)Operates in Series or Shunt Mode; (5)Pin Compatible with AD586, AD587; (6)Output Sinks and Sources in Series Mode; (7)Very Low Noise < 1ppm P-P (0.1Hz to 10Hz); (8)100% Noise Tested; (9)> 100dB Ripple Rejection; (10)Minimum Input/Output Differential of 1V.

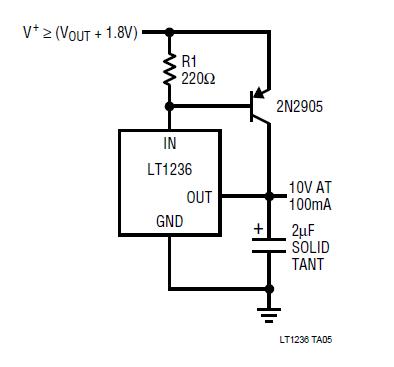

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1236AIS8-5 |
|
IC VREF SERIES SHUNT PREC 8-SOIC |
Data Sheet |
|
|
||||||||||
|
LT1236AIS8-5#PBF |
|
IC VREF SERIES SHUNT PREC 8-SOIC |
Data Sheet |
|
|
||||||||||
|
LT1236AIS8-5#TR |
|
IC VREF SERIES SHUNT PREC 8-SOIC |
Data Sheet |
|
|
||||||||||
|
LT1236AIS8-5#TRPBF |
|
IC VREF SERIES SHUNT PREC 8-SOIC |
Data Sheet |
|
|
||||||||||
