Product Summary
The LT1362CS#TR is a dual and quad 50MHz, 800V/μs op amp. It features much lower supply current and higher slew rate than devices with comparable bandwidth. Its applications include wideband amplifiers, buffers, active filters, video and RF amplification, cable drivers, data acquistition systems.
Parametrics
LT1362CS#TR absolute maximum ratings: (1)total supply voltage: 36V; (2)differential input voltage: 10V; (3)input voltage: ±VS; (4)Output short-circuit duration: indefinite; (5)operating temperature range: -40 to 85℃; (6)specified temperature range: -40 to 85℃; (7)maximum junction temperature: 150℃; (8)storage temeprature range: -65 to 150℃; (9)lead temperature: 300℃.
Features
LT1362CS#TR features: (1)50MHz gain bandwidth; (2)800V/μs slew rate; (3)5mA maximum supply current per amplifier; (4)unity-gain stable; (5)1mV maximum input offset voltage; (6)1μA maximum input bias current; (7)250nA maximum input offset current; (8)60ns settling time to 0.1%, 10V step.

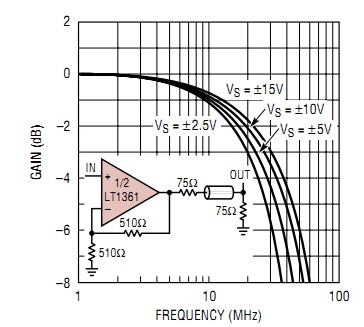

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1362CS#TR |
|

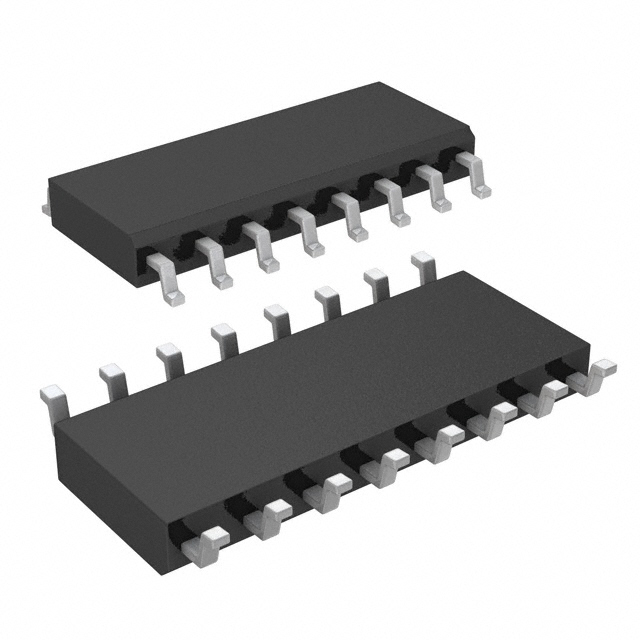

IC OPAMP QUAD 50MHZ HS LP 16SOIC |
Data Sheet |
|
|
||||||
|
LT1362CS#TRPBF |
|
IC OP-AMP HISPD 50MHZ QUAD16SOIC |
Data Sheet |
|
|
||||||
