Product Summary
The LT1365CS#TR is a dual and quad 70MHz, 1000V/μs op amp. The amplifiers feature much lower supply current and higher slew rate than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with matched high impedance inputs and the slewing performance of a current feedback amplifier. Its applications include Wideband Amplifiers, Buffers, Active Filters, Video and RF Amplification, Cable Drivers, Data Acquisition Systems.
Parametrics
LT1365CS#TR absolute maximum ratings: (1)total supply voltage: 36V; (2)differential voltage: ±10V; (3)input voltage: ±VS; (4)Output short-circuit duration: indefinite; (5)operating temperature range: -40 to 85℃; (6)specified temperature range: -40 to 85℃; (7)maximum junction temperature: 150℃; (8)storage temperature range: -65 to 150℃.
Features
LT1365CS#TR features: (1)70MHz Gain Bandwidth; (2)1000V/µs Slew Rate; (3)7.5mA Maximum Supply Current per Amplifier; (4)Unity-Gain Stable; (5)C-Load TM Op Amp Drives All Capacitive Loads; (6)9nV/√Hz Input Noise Voltage; (7)1.5mV Maximum Input Offset Voltage; (8)2µA Maximum Input Bias Current; (9)350nA Maximum Input Offset Current; (10)50mA Minimum Output Current; (11)±7.5V Minimum Output Swing into 150Ω.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1365CS#TR |
|

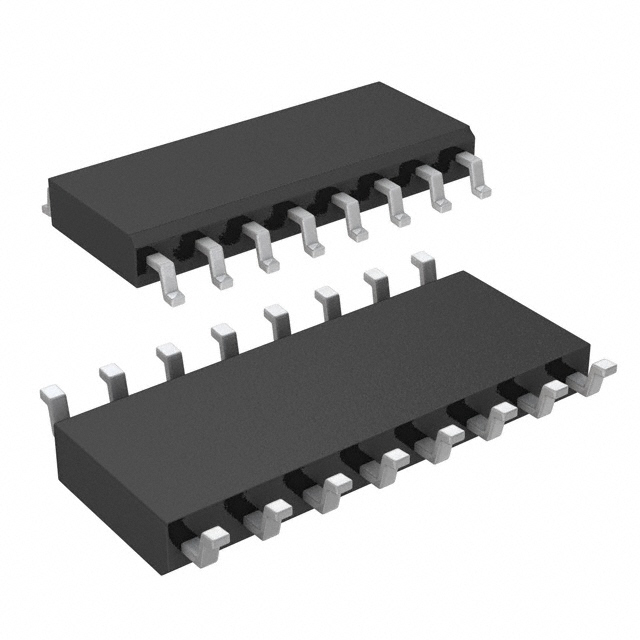

IC OPAMP QUAD 70MHZ HISPD 16SOIC |
Data Sheet |
|
|
||||||
|
LT1365CS#TRPBF |
|
IC OP-AMP HISPD 70MHZ QUAD16SOIC |
Data Sheet |
|
|
||||||
