Product Summary
The LT1424IS8-5#TR is a isolated flyback switching regulator with 5V output. Its applications include isolated communication supplies, industrial automation, instrumentation systems. The LT1424IS8-5#TR is designed for the isolated flyback topology. The LT1424IS8-5#TR is a moolithic high power switching regualtor specifically designed for the isolated flyback topology. A high current, high efficiency switch is included on the die along with all oscillator, control and protetion circuitry.
Parametrics
LT1424IS8-5#TR absolute maximum ratings: (1)supply voltage: 20V; (2)switch voltage: 35V; (3)operating junction temperature range: 0 to 125℃; (4)storage temperature range: -65 to 150℃; (5)lead temperature: 300℃.
Features
LT1424IS8-5#TR features: (1)no transformer "third winding" or optoisolator required; (2)designed for use with 1:1 ratio transformers; (3)fixed, application specific 5V output voltage; (4)regulation maintained well into discontinuous mode.

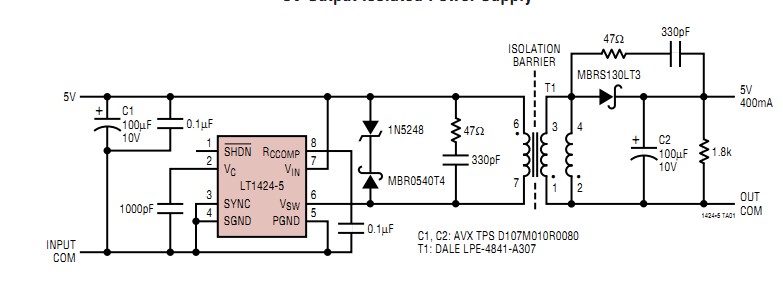

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1424IS8-5#TR |
|
IC REG FLYBACK ISOLATED 5V 8SOIC |
Data Sheet |
|
|
||||||
|
LT1424IS8-5#TRPBF |
|
IC REG FLYBACK ISOLATED 5V 8SOIC |
Data Sheet |
|
|
||||||
