Product Summary
The LT1506CS8#TR is a step-down switching regualtor. Its applications include Portable Computers, Battery-Powered Systems, Battery Charger, Distributed Power.
Parametrics
LT1506CS8#TR absolute maximum ratings: (1)input voltage: 16V; (2)BOOST pin above input voltage: 15V; (3)FB pin current: 1mA; (4)operating temperature range: 0 to 125℃; (5)storage temperature range: -65 to 150℃; (6)lead temperature: 300℃.
Features
LT1506CS8#TR features: (1)Constant 500kHz Switching Frequency; (2)Easily Synchronizable; (3)Operates with Input as Low as 4V; (4)Uses All Surface Mount Components; (5)Inductor Size Reduced to 1.8µH.

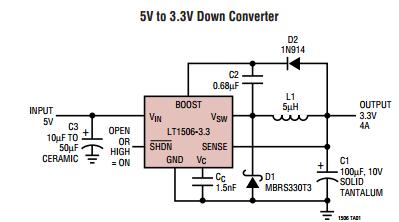

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1506CS8#TR |
|
IC REG BUCK ADJ 4.5A 8SOIC |
Data Sheet |
|
|
||||||
|
LT1506CS8#TRPBF |
|
IC REG BUCK ADJ 4.5A 8SOIC |
Data Sheet |
|
|
||||||
