Product Summary
The LT1675CMS8-1#TR is a triple and single RGB multiplexer with amplifiers. Its applications include RGB Switching, Workstation Graphics, Pixel Switching, Coaxial Cable Drivers, High Speed Signal Processing. The LT1675CMS8-1#TR is a single version with two inputs, a single output and is ideal for a single channel application such as video sync. Unlike competitive solutions that are in bulky high pin count packages, the LT1675CMS8-1#TR is in a 16-lead narrow body SSOP.
Parametrics
LT1675CMS8-1#TR absolute maximum ratings: (1)supply voltage: ±6.3V; (2)Inputs current: ±20mA; (3)specified temeprature range: 0 to 70℃; (4)storage temperature range: -65 to 150℃; (5)lead temperature: 300℃.
Features
LT1675CMS8-1#TR features: (1)Expandable to Larger Arrays; (2)Drives Cables Directly; (3)High Slew Rate: 1100V/µs; (3)Low Switching Transient: 50mV; (4)Shutdown Supply Current: 100µA; (5)Output Short-Circuit Protected.

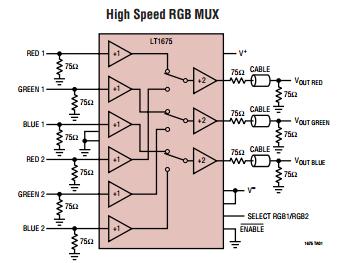

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1675CMS8-1#TR |
|

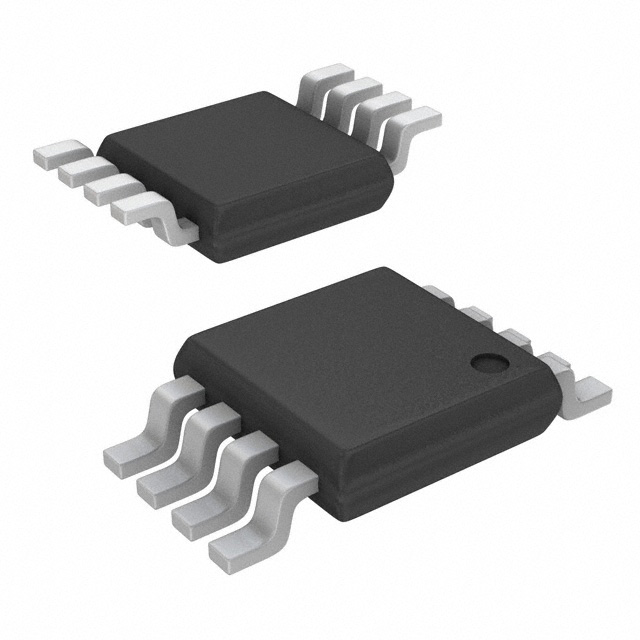

IC MUX RGB TRIPLE 250MHZ 8MSOP |
Data Sheet |
|
|
||||||
|
LT1675CMS8-1#TRPBF |
|
IC MUX RGB SGL HS W/CFA 8-MSOP |
Data Sheet |
|
|
||||||
