Product Summary
The LT1679CS#TR is a dual/quad low noise, rail-to-rail, precision op amp. Its applications include Strain Gauge Amplifiers, Portable Microphones, Battery-Powered Rail-to-Rail Instrumentation, Low Noise Signal Processing, Microvolt Accuracy Threshold Detection, Infrared Detectors. The LT1679CS#TR brings precision as well as low noise to single supply applications as low as 3V. The input range exceeds the power supply by 100mV with no phase inversion while the output can swing to within 170mV of either rail.
Parametrics
LT1679CS#TR absolute maximum ratings: (1)supply voltage: ±18V; (2)differential input current: ±25mA; (3)storage temperature range: -65 to 150℃; (4)lead temperature: 300℃; (5)specified temperature range: -40 to 85℃.
Features
LT1679CS#TR features: (1)Low Input Bias Current: 20nA Max; (2)High AVOL: 3V/µV Min, RL = 10k; (3)High CMRR: 100dB Min; (4)High PSRR: 106dB Min; (5)Gain Bandwidth Product: 20MHz; (5)Operating Temperature Range: –40°C to 85°C.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

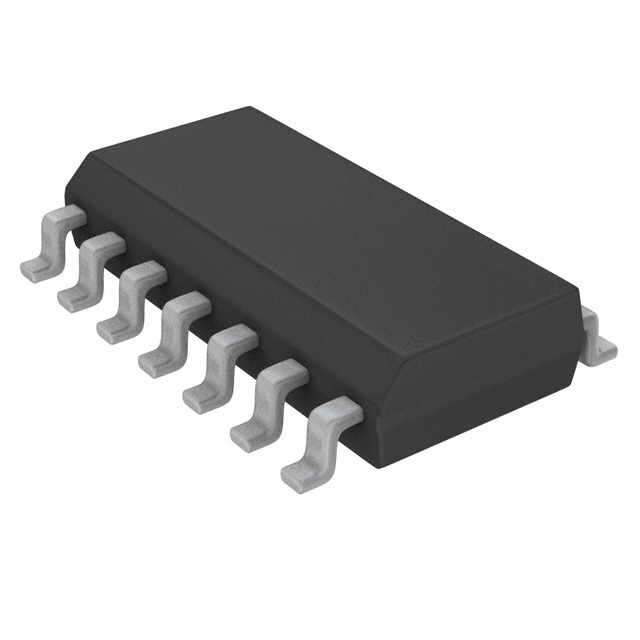

![]() LT1679CS#TR |
![]() |
![]() IC OPAMP R-R I/O QUAD LN 14SOIC |
![]() Data Sheet |
![]()
|
|
||||||
![]() |
![]() LT1679CS#TRPBF |
![]() |
![]() IC OPAMP R-R I/O QUAD LN 14SOIC |
![]() Data Sheet |
![]()
|
|
