Product Summary
The LT1680CSW#TR is a high power DC/DC step-up controller. Its applications include High Power Single Board Systems, Distributed Power Converters, Industrial Control Systems, Lead-Acid Battery Back-Up Systems, Automotive and Heavy Equipment. The LT1680CSW#TR is designed for improved speed and stability for a wide range of operating conditions. The output stage provides active drive in both directions for maximum speed into TTL, CMOS or passive loads with minimal cross-conduction current.
Parametrics
LT1680CSW#TR absolute maximum ratings: (1)power supply voltage: -0.3 to 12V; (2)Sense amplifier input common mode: -0.3 to 60V; (3)reference output current: 65mA; (4)Storage temperature range: 65 to 150℃; (5)lead temperature: 300℃.
Features
LT1680CSW#TR features: (1)Fixed Frequency Current Mode Operation; (2)Oscillator Synchronizable Up to 200kHz; (3)Undervoltage Lockout with Hysteresis; (4)Programmable Start Inhibit for Power Supply Sequencing and Protection; (5)User Adjustable Slope Compensation.

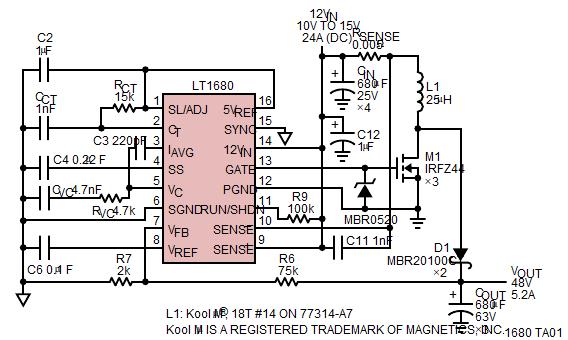

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1680CSW#TR |
|

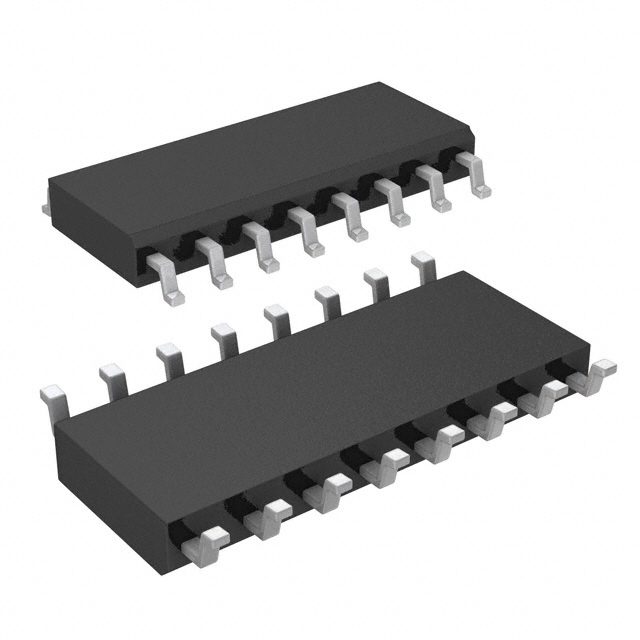

IC REG CTRLR BST PWM CM 16-SOIC |
Data Sheet |
|
|
||||||
|
LT1680CSW#TRPBF |
|
IC REG CTRLR BST PWM CM 16-SOIC |
Data Sheet |
|
|
||||||
