Product Summary

The LT1762EMS8-3.3#TR is micropower, low noise, low dropout regulator. The LT1762EMS8-3.3#TR is capable of supplying 50mA of output current with a dropout voltage of 300mV. A key feature of the LT1762EMS8-3.3#TR regulator is low output noise. The LT1762EMS8-3.3#TR regulator is stable with output capacitor as low as 2.2μF. Applications of the LT1762EMS8-3.3#TR include: Cellular Phones, Battery-Powered Systems, Frequency Synthesizers, Noise-Sensitive Instrumentation Systems.

Parametrics

LT1762EMS8-3.3#TR absolute maximum ratings: (1) IN Pin Voltage: ±20V; (2) Out Pin Voltage: ±20V; (3) Input to Output Differential Voltage: ±20V; (4) SENSE Pin Voltage: ±20V; (5) ADJ Pin Voltage: ±7V; (6) BYP Pin Voltage: ±0.6V; (7) SHDN Pin Voltage: ±20V; (8) Output Short-Circut Duration: Indefinite; (9) Operating Junction Temperature Range: -40°C to 125°C; (10) Storage Temperature Range: -65°C to 150°C; (11) Lead Temperature (Soldering, 10 sec) : 300°C.

Features

LT1762EMS8-3.3#TR features: (1) Low Noise: 20μV (10Hz to 100kHz) ; (2) Low Quiescent Current: 25μA; (3) Wide Input Voltage Range: 1.8V to 20V; (4) Output Current: 150mA; (5) Very Low Shutdown Current: < 1μA; (6) Low Dropout Voltage: 300mV; (7) No Protection Diodes Needed; (8) Fixed Output Voltages: 2.5V, 3V, 3.3V, 5V; (9) Adjustable Output from 1.22V to 20V; (10) Stable with 2.2μF Output Capacitor; (11) Stable with Aluminum, Tantalum or Ceramic Capacitors; (12) Reverse Battery Protection; (13) No Reverse Current; (14) Overcurrent and Overtemperature Protected; (15) 8-Lead MSOP Package.

Diagrams

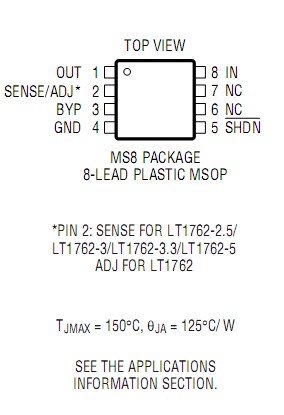

LT1762EMS8-3.3#TR Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LT1762EMS8-3.3#TR
LT1762EMS8-3.3#TR


IC REG LDO 3.3V .15A 8MSOP

Data Sheet

0-5000: $0.75
LT1762EMS8-3.3#TRPBF
LT1762EMS8-3.3#TRPBF


IC REG LDO 3.3V .15A 8MSOP

Data Sheet

0-2500: $0.74
