LT1764ET

3A, low dropout regulator, TO220-5, 2.7V to 20V, LT1764ET

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: LT1764ET

Brand:: Linear Technology - Linear | Pack: TO | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:LT1764ET
US $0.15 - 2.40
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

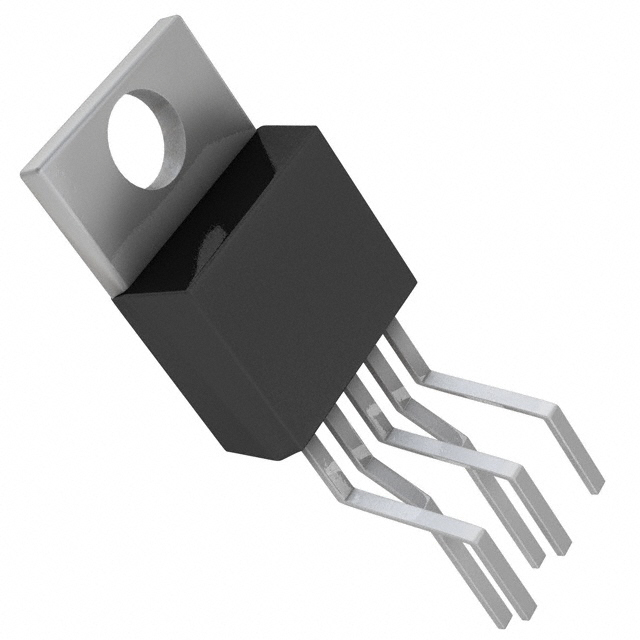

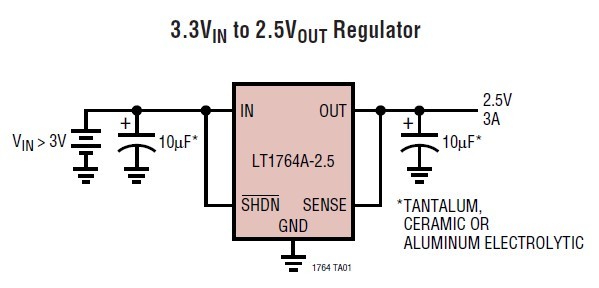

The LT1764ET is a low dropout regulator optimized for fast transient response. The device is capable of supplying 3A of output current with a dropout voltage of 340mV. Operating quiescent current is 1mA, dropping to <1μA in shutdown. Quiescent current is well controlled; it does not rise in dropout as it does with many other regulators. In addition to fast transient response, the LT1764ET has very low output voltage noise which makes the device ideal for sensitive RF supply applications. The LT1764ET regulator is available in 5-lead TO-220 and DD packages, and 16-lead FE packages. Applications of the LT1764ET are: 3.3V to 2.5V Logic Power Supply, Post Regulator for Switching Supplies.

Parametrics

LT1764ET absolute maximum ratings: (1)IN Pin Voltage: ±20V; (2)OUT Pin Voltage: ±20V; (3)Input to Output Differential Voltage: ±20V; (4)SENSE Pin Voltage: ±20V; (5)ADJ Pin Voltage: ±7V; (6)SHDN Pin Voltage: ±20V; (7)Output Short-Circuit Duration: Indefinite; (8)Storage Temperature Range: –65℃ to 150℃; (9)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1764ET features: (1)Optimized for Fast Transient Response; (2)Output Current: 3A; (3)Dropout Voltage: 340mV at 3A; (4)Low Noise: 40μVRMS (10Hz to 100kHz); (5)1mA Quiescent Current; (6)Wide Input Voltage Range: 2.7V to 20V; (7)Reverse Battery Protection; (8)No Reverse Current; (9)Thermal Limiting.
