Product Summary
The LTC1144CS8#TR is a monolithic CMOS switched-capacitor voltage converter. The LTC1144CS8#TR performs supply voltage conversion from positive to negative from an input range of 2V to 18V, resulting in complementary output voltages of –2V to –18V. Only two noncritical external capacitors are needed for the charge pump and charge reservoir functions. The applications of the LTC1144CS8#TR include Conversion of 15V to ±15V Supplies, Inexpensive Negative Supplies, Data Acquisition Systems, High Voltage Upgrade to LTC1044 or 7660, Voltage Division and Multiplications, Automotive Applications, Battery Systems with Wall Adapter/Charger.
Parametrics
LTC1144CS8#TR absolute maximum ratings: (1)Supply Voltage (V+) (Transient): 20V; (2)Supply Voltage (V+) (Operating): 18V; (3)Input Voltage on Pins 1, 6, 7 (Note 2):–0.3V＜VIN＜(V+) + 0.3V; (4)Output Short-Circuit Duration V+ ≤10V: Indefinite; (5)V+≤15V: 30 sec; (6)V +≤20V: Not Protected; (7)Power Dissipation: 500mW; (8)Operating Temperature Range LTC1144C: 0℃ to 70℃; (9)LTC1144I:– 40℃ to 85℃; (10)Storage Temperature Range:–65℃ to 150℃; (11)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LTC1144CS8#TR features: (1)Wide Operating Supply Voltage Range: 2V to 18V; (2)Boost Pin (Pin 1) for Higher Switching Frequency; (3)Simple Conversion of 15V to –15V Supply; (4)Low Output Resistance: 120W Maximum; (5)Power Shutdown to 8mA with SHDN Pin; (6)Open Circuit Voltage Conversion Efficiency: 99.9% Typical; (7)Power Conversion Efficiency: 93% Typical; (8)Easy to Use.

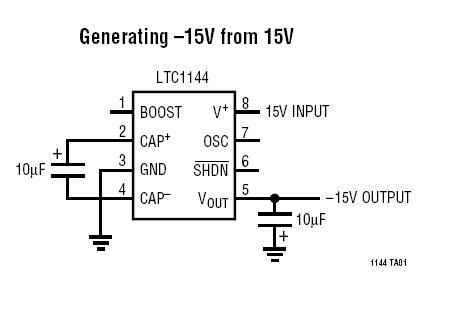

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1144CS8#TR |
|
IC REG SWITCHED CAP INV 8SOIC |
Data Sheet |
|
|
||||||
|
LTC1144CS8#TRPBF |
|
IC REG SWITCHED CAP INV 8SOIC |
Data Sheet |
|
|
||||||
