Product Summary
The LTC1294DCSW#TR is a Single Chip 12-Bit Data Acquisition System. It uses LTCMOSTM switched capacitor technology to perform either 12-bit unipolar, or 11-bit plus sign bipolar A/D conversions. When the LTC1294DCSW#TR is idle it can be powered down in applications where low power consumption is desired. The serial I/O is designed to communicate without external hardware to most MPU serial ports and all MPU parallel I/O ports allowing up to eight channels of data to be transmitted over as few as three wires. The LTC1294DCSW#TR contains a serial I/O successive approximation A/D converter.
Parametrics
LTC1294DCSW#TR absolute maximum ratings: (1)Supply Voltage (VCC) to GND or V–: 12V; (2)Negative Supply Voltage (V–): –6V to GND; (3)Inputs Voltage: (V–) –0.3V to VCC + 0.3V; (4)Digital Inputs Voltage: –0.3V to 12V; (5)Digital Outputs Voltage: –0.3V to VCC + 0.3V; (6)Power Dissipation: 500mW; (7)Operating Temperature Range: 0℃ to 70℃; (8)Storage Temperature Range: –65℃ to 150℃; (9)Lead Temperature (Soldering, 10 sec.): 300℃.
Features
LTC1294DCSW#TR features: (1)Software Programmable Features; (2)Unipolar/Bipolar Conversion; (3)Differential/Single Ended Inputs; (4)MSB-First or MSB/LSB Data Sequence; (5)Power Shutdown; (6)Built-In Sample and Hold; (7)Single Supply 5V or ±5V Operation; (8)Direct 4-Wire Interface to Most MPU Serial Ports and All MPU Parallel Ports; (9)46.5kHz Maximum Throughput Rate.

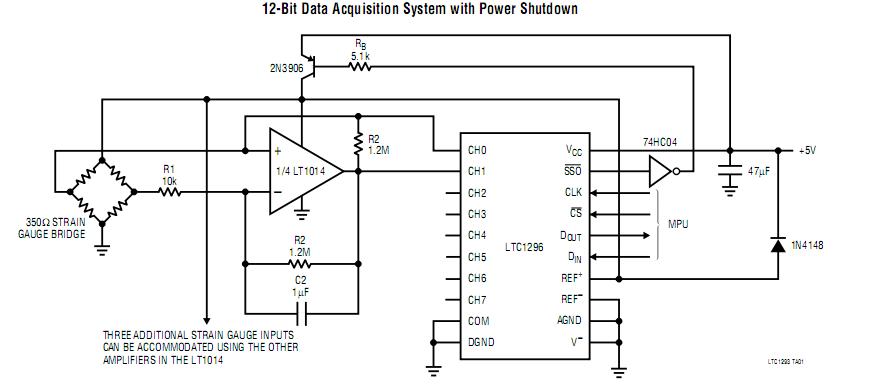

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1294DCSW#TR |
|
IC DATA ACQ SYS 12BIT 5V 20SOIC |
Data Sheet |
|
|
||||||
|
LTC1294DCSW#TRPBF |
|
IC DATA ACQ SYSTEM 12BIT 20-SOIC |
Data Sheet |
|
|
||||||
