Product Summary
The LTC1322CSW is a low power CMOS bidirectional transceiver, each featuring two reconfigurable interface ports. Each can be configured as two RS485 differential ports, as two single-ended ports, or as one RS485 differential port and one single-ended port. The LTC1322CSW can provide RS232 or EIA562 compatible single-ended outputs and additionally includes an output enable pin, allowing the receiver logic level outputs to be three-stated. The applications of the LTC1322CSW include Low Power RS485/RS422/EIA562/RS232 Interface, Cable Repeater, Level Translator.
Parametrics
LTC1322CSW absolute maximum ratings: (1)Supply Voltage, VCC: 6.5V; VDD (LTC1321/LTC1322 Only): 10V; VEE: -10V; (2)Input Voltage, Drivers: -0.3V to (VCC + 0.3V); Receivers: -25V to 25V; (3)ON/OFF, LB, SEL1, SEL2, OE: -0.3V to (VCC + 0.3V); (4)Output Voltage Drivers: -25V to 25V; Receivers: -0.3V to (VCC + 0.3V); (5)Output Short-Circuit Duration: Indefinite; (6)Operating Temperature Range: 0℃ to 70℃; (7)Storage Temperature Range: -65℃ to 150℃; (8)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LTC1322CSW features: (1)LTC1321: 2-EIA562/RS232 Transceivers/2-RS485 Transceivers; (2)LTC1322: 4-EIA562/RS232 Transceivers/2-RS485 Transceivers; (3)LTC1335: 4-EIA562 Transceivers/2-RS485 Transceivers with OE; (4)LTC1321/LTC1322 Have the Same Pinout as SP301/SP302; (5)LTC1335 Features Receiver Three-State Outputs; (6)Low Supply Current: 1mA Typical; (7)15mA Supply Current in Shutdown; (8)120kBaud in EIA/TIA-562 or RS232 Mode; (9)10MBaud in RS485/RS422 Mode; (10)Self-Testing Capability in Loopback Mode; (11)Power-Up/Down Glitch-Free Outputs; (12)Driver Maintains High Impedance in Three-State, Shutdown or With Power Off; (13)Thermal Shutdown Protection; (14)I/O Lines Can Withstand ±25V; (15)Withstands Repeated 10kV ESD Pulses.

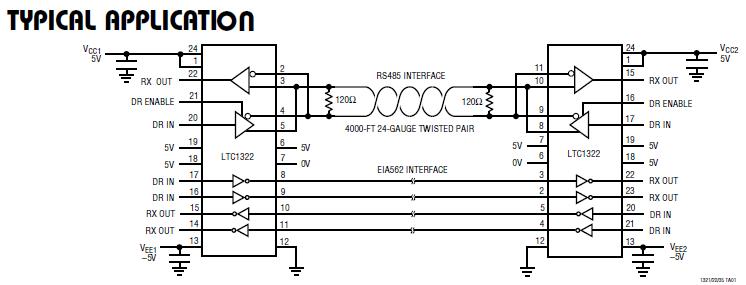

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1322CSW |
|
IC TXRX RS232/485/EIA562 24-SOIC |
Data Sheet |
|
|
||||||
|
LTC1322CSW#TRPBF |
|
IC TXRX RS232/485/EIA562 24-SOIC |
Data Sheet |
|
|
||||||
|
LTC1322CSW#TR |
|
IC TXRX RS232/485/EIA562 24SOIC |
Data Sheet |
|
|
||||||
|
LTC1322CSW#PBF |
|
IC TXRX RS232/485/EIA562 24-SOIC |
Data Sheet |
|
|
||||||
