Product Summary

The LTC1417ACGN#TR is a low power, 400ksps, 14-bit A/D converter. This versatile device can operate from a single 5V or ±5V supplies. An onboard high performance sample-andhold, a precision reference and internal trimming minimize external circuitry requirements. The low 20mW power dissipation is made even more attractive with two userselectable power shutdown modes. The applications of the LTC1417ACGN#TR include High Speed Data Acquisition, Digital Signal Processing, Isolated Data Acquisition Systems, Audio and Telecom Processing, Spectrum Instrumentation.

Parametrics

LTC1417CGN#TR absolute maximum ratings: (1)Positive Supply Voltage (VDD): 6V; (2)Negative Supply Voltage (VSS), Bipolar Operation Only: -6V to GND; (3)Total Supply Voltage (VDD to VSS), Bipolar Operation Only: 12V; (4)Analog Input Voltage (Note 3), Unipolar Operation: -0.3V to (VDD + 0.3V); (5)Bipolar Operation: (VSS -0.3) to (VDD + 0.3V); (6)Digital Input Voltage (Note 4), Unipolar Operation: -0.3V to 10V; Bipolar Operation: (VSS -0.3V) to 10V; (7)Digital Output Voltage, Unipolar Operation: –0.3 to (VDD + 0.3V); Bipolar Operation: (VSS -0.3V) to (VDD + 0.3V); (8)Power Dissipation: 500mW.

Features

LTC1417CGN#TR features: (1)16-Pin Narrow SSOP Package (SO-8 Footprint); (2)Sample Rate: 400ksps; (3)±1.25LSB INL and ±1LSB DNL Max; (4)Power Dissipation: 20mW (Typ); (5)Single Supply 5V or ±5V Operation; (6)Serial Data Output; (7)No Missing Codes Over Temperature; (8)Power Shutdown: Nap and Sleep; (9)External or Internal Reference; (10)Differential High Impedance Analog Input; (11)Input Range: 0V to 4.096V or ±2.048V; (12)81dB S/(N + D) and – 95dB THD at Nyquist.

Diagrams

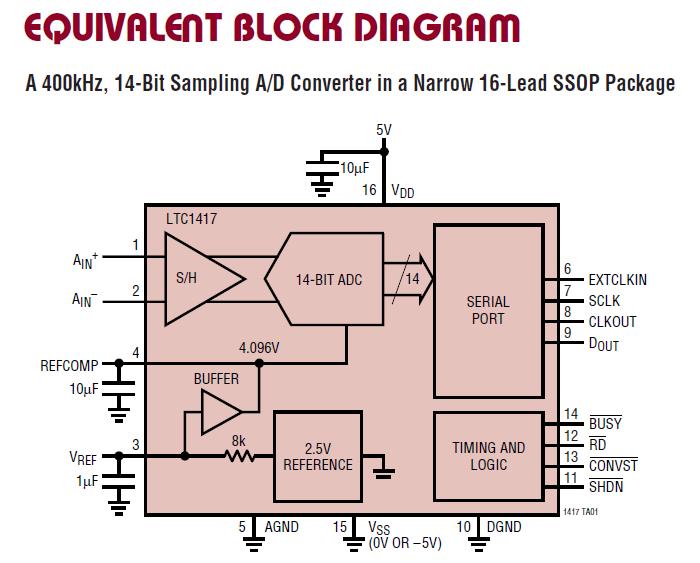

LTC1417CGN#TR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LTC1417CGN#TR
LTC1417CGN#TR


IC ADC 14BIT 400KSPS SMPL 16SSOP

Data Sheet

0-2500: $4.92
LTC1417CGN#TRPBF
LTC1417CGN#TRPBF


IC A/D CONV 14BIT SAMPLNG 16SSOP

Data Sheet

0-2500: $4.92
