Product Summary
The LTC1422CS8#TR is an 8-pin Hot Swap controller that allows a board to be safely inserted and removed from a live backplane. Using an external N-channel pass transistor, the board supply voltage can be ramped up at a programmable rate. A high side switch driver controls the N-channel gate for supply voltages ranging from 2.7V to 12V. A programmable electronic circuit breaker protects against shorts. The RESET output can be used to generate a system reset when the supply voltage falls below a programmable voltage. The ON pin can be used to cycle the board power or to generate a soft reset. The applications of the LTC1422CS8#TR include Hot Board Insertion, Electronic Circuit Breaker.
Parametrics
LTC1422CS8#TR absolute maximum ratings: (1)Supply Voltage (VCC): 13.2V; (2)Input Voltage (TIMER, SENSE): -0.3V to (VCC + 0.3V); (3)Input Voltage (FB, ON): -0.3V to 13.2V; (4)Output Voltage (RESET): -0.3V to 13.2V; (5)Output Voltage (GATE): -0.3V to 20V; (6)Operating Temperature Range: 0℃ to 70℃; (7)Storage Temperature Range: -65℃ to 150℃; (8)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LTC1422CS8#TR features: (1)Allows Safe Board Insertion and Removal from a Live Backplane; (2)System Reset Output with Programmable Delay; (3)Programmable Electronic Circuit Breaker; (4)User-Programmable Supply Voltage Power-Up Rate; (5)High Side Driver for an External N-Channel FET; (6)Controls Supply Voltages from 2.7V to 12V; (7)Undervoltage Lockout; (8)Soft Reset Input; (9)Glitch Filter on RESET.

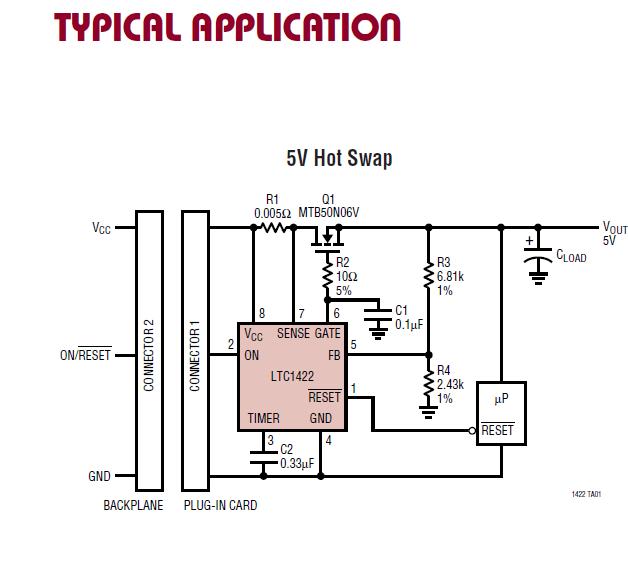

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1422CS8#TR |
|
IC CONTROLLER HOTSWAP 8SOIC |
Data Sheet |
|
|
||||||
|
LTC1422CS8#TRPBF |
|
IC CONTROLLER HOT SWAP 8-SOIC |
Data Sheet |
|
|
||||||
