Product Summary
The LTC1518CS#TR is a high speed, precision delay differential quad bus/line receiver that can operate at data rates as high as 52Mbps. They are pin compatible with the LTC488/LTC489 RS485 line receivers and operate over the entire -7V to 12V common mode range. A unique architecture provides very stable propagation delays and low skew over wide input common mode, input overdrive and ambient temperature ranges. Propagation delay is 18.5ns ±3.5ns. Typical tPLH/tPHL and channel-to-channel skew is 500ps. The applications of the LTC1518CS#TR include High Speed RS485/RS422 Receivers, STS-1/OC-1 Data Receivers, PECL Line Receivers, Level Translators, Fast-20/Fast-40 SCSI Receiver.
Parametrics
LTC1518CS#TR absolute maximum ratings: (1)Supply Voltage: 10V; (2)Digital Input Currents: -100mA to 100mA; (3)Digital Input Voltages: -0.5V to 10V; (4)Receiver Input Voltages: ±14V; (5)Receiver Output Voltages: -0.5V to VDD + 0.5V; (6)Receiver Input Differential: 10V; (7)Short-Circuit Duration: Indefinite; (8)Operating Temperature Range: 0℃ to 70℃; (9)Storage Temperature Range: -65℃ to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LTC1518CS#TR features: (1)Precision Propagation Delay: 18.5ns ±3.5ns Over Temperature; (2)High Data Rate: 52Mbps; (3)Low tPLH/tPHL Skew: 500ps Typ; (4)Low Channel-to-Channel Skew: 500ps Typ; (5)–7V to 12V RS485 Input Common Mode Range; (6)Input Resistance 322k, Even When Unpowered; (7)Guaranteed Fail-Safe Operation over the Entire Common Mode Range; (8)Hot SwapTM Capable; (9)High Common Mode Rejection to 26MHz; (10)Short-Circuit Protection: 10mA Typ Output Current for an Indefinite Short; (11)Three-State Output Capability; (12)Will Not Oscillate with Slow Moving Input Signals; (13)Single 5V Supply; (14)Pin Compatible with LTC488, LTC489.

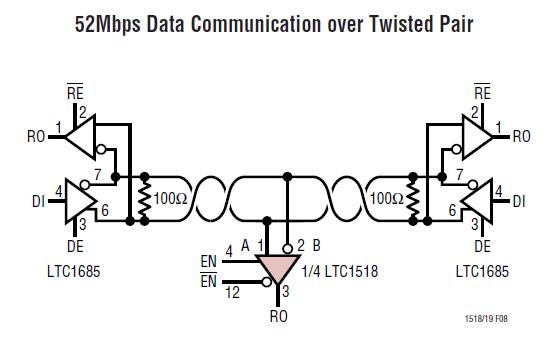

Diagrams
