Product Summary

The LTC1566-1IS8#TR is a 7th order continuous time lowpass filter with 12dB of passband gain. The selectivity, linearity and dynamic range makes the LTC1566-1 suitable for filtering in data communications or data acquisition systems. The filter attenuation is 40dB at 1.5 ×fCUTOFF and at least 60dB for frequencies above 10MHz. The LTC1566-1IS8#TR has an input referred noise of 62mVRMS in a 2MHz bandwidth. In receiver applications where the signal levels are small, the filter features 71dB of spurious free dynamic range. The applications of the LTC1566-1IS8#TR include WCDMA Basestations, Communication Filters, Antialiasing Filters, Smoothing or Reconstruction Filters, Matched Filter Pairs, Replacement for LC Filters.

Parametrics

LTC1566-1IS8#TR absolute maximum ratings: (1)Total Supply Voltage (V+ to V–): 11V; (2)Power Dissipation: 500mW; (3)Operating Temperature Range: 0℃ to 70℃; (4)Storage Temperature Range: -65℃ to 150℃; (5)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC1566-1IS8#TR features: (1)7th Order, 2.3MHz Lowpass Filter in an SO-8; (2)62mVRMS Input Referred Noise; (3)Operates on a Single 5V or a ±5V Supply; (4)Differential Inputs and Outputs; (5)Low Offset (3mV typical, 10mVMAX); (6)Adjustable Output Common Mode Voltage; (7)40dB Attenuation at 1.5 × fCUTOFF; (8)Requires No External Components.

Diagrams

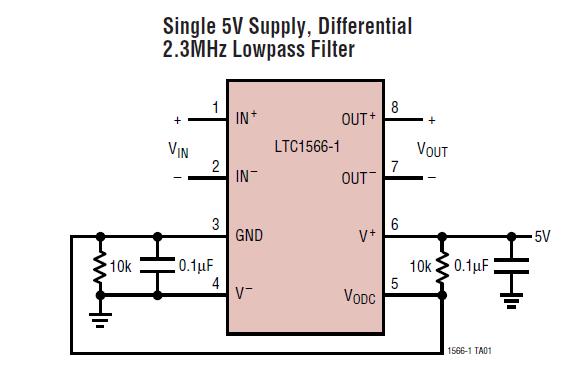

LTC1566-1IS8#TR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LTC1566-1IS8#TR
LTC1566-1IS8#TR


IC FILTER LP 7ORDER 2.3MHZ 8SOIC

Data Sheet

0-2500: $3.99
LTC1566-1IS8#TRPBF
LTC1566-1IS8#TRPBF


IC FILTER LP 7ORDER 2.3MHZ 8SOIC

Data Sheet

0-2500: $3.99
