Product Summary
The LTC1645CS8#TR is a 2-channel Hot Swap controller that allows a board to be safely inserted and removed from a live backplane. Using external N-channel pass transistors, the supply voltages can be ramped at a programmable rate. Two high side switch drivers control the N-channel gates for supply voltages ranging from 1.2V to 12V. The two channels can be set to ramp up and down separately, or they can be programmed to rise and fall simultaneously, ensuring power supply tracking at the two outputs. The applications of the LTC1645CS8#TR include Hot Board Insertion, Power Supply Sequencing, Electronic Circuit Breaker.
Parametrics
LTC1645CS8#TR absolute maximum ratings: (1)Supply Voltage (VCC1, VCC2): 13.2V; (2)Input Voltage, FB, ON, COMP+: –0.3V to (VCC1 + 0.3V); TIMER: -0.3V to 2.5V; SENSE1: (VCC1 -0.7V) to (VCC1 + 0.3V); SENSE2: (VCC1 -0.7V) to (VCC2 + 0.3V); (3)Output Voltage, RESET, COMPOUT, FAULT: -0.3V to 16V; GATE1, GATE2: Internally Limited (Note 3); (4)Output Current, GATE1, GATE2: ±20mA; (5)Operating Temperature Range: 0℃ to 70℃; (6)Storage Temperature Range: -65℃ to 150℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LTC1645CS8#TR features: (1)Allows Safe Board Insertion and Removal from a Live Backplane; (2)Programmable Power Supply Sequencing; (3)Programmable Electronic Circuit Breaker; (4)User-Programmable Supply Voltage Power-Up and Power-Down Rate; (5)High Side Drivers for External N-Channel FETs; (6)Controls Supply Voltages from 1.2V to 12V; (7)Ensures Proper Power-Up Behavior; (8)Undervoltage Lockout; (9)Glitch Filter Protects Against Spurious RESET Signals.

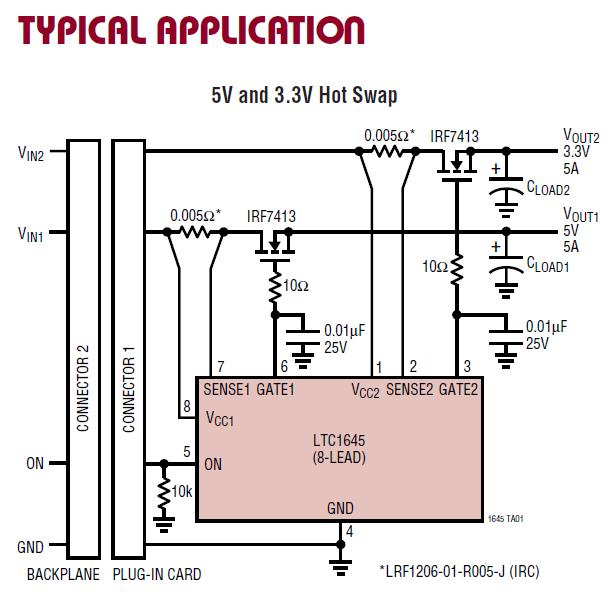

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1645CS8#TR |
|
IC CTRLR SEQ HOTSWAP DUAL 8SOIC |
Data Sheet |
|
|
||||||
|
LTC1645CS8#TRPBF |
|
IC CTRLR SEQ HOTSWAP DUAL 8SOIC |
Data Sheet |
|
|
||||||
