Product Summary

The LTC2624CGN#TR is a quad 16-,14- and 12-bit 2.5V to 5.5V rail-to-rail voltage output DAC in 16-lead narrow SSOP packages. The LTC2624CGN#TR has separate reference inputs for each DAC. The LTC2624CGN#TR has built-in high performance output buffers and are guaranteed monotonic. The LTC2624CGN#TR establishes advanced performance standards for output drive, crosstalk and load regulation in singlesupply, voltage output multiples. The applications are (1)mobile communications; (2)process control and industrial automation; (3)instrumentation; (4)automatic test equipment.

Parametrics

LTC2624CGN#TR absolute maximum ratings: (1)Any Pin to GND : – 0.3V to 6V; (2)Any Pin to VCC : – 6V to 0.3V; (3)Maximum Junction Temperature : 125°C; (4)Operating Temperature Range: – 40°C to 85°C; (5)Storage Temperature Range : –65°C to 150°C; (6)Lead Temperature (Soldering, 10 sec): 300°C.

Features

LTC2624CGN#TR features: (1)Guaranteed 16-Bit Monotonic Over Temperature; (2)Separate Reference Inputs for each DAC; (3)Wide 2.5V to 5.5V Supply Range; (4)Low Power Operation: 250mA per DAC at 3V; (5)Individual DAC Power-Dowto 1mA, Max; (6)Ultralow Crosstalk BetweeDACs (<5mV); (7)High Rail-to-Rail Output Drive (±15mA); (8)Double Buffered Digital Inputs; (9)16-Lead Narrow SSOP Packag.

Diagrams

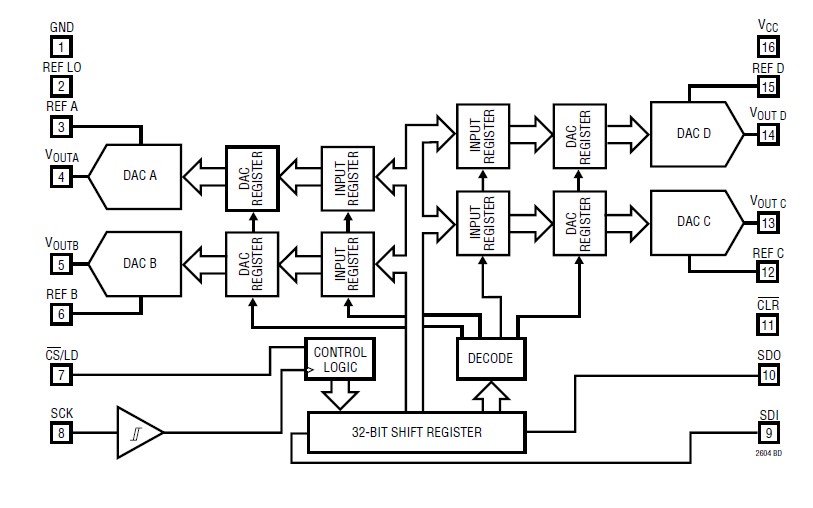

LTC2624CGN#TR pin connection
