Product Summary

The LTC693CSW#TR is a microprocessor supervisory circuit. The LTC693CSW#TR provides complete power supply monitoring and battery control functions for microprocessor reset, battery back-up, CMOS RAM write protection, power failure warning and watchdog timing. A precise internal voltage reference and comparator circuit monitor the power supply line. When an out-of-tolerance condition occurs, the reset outputs are forced to active states and the chip enable output unconditionally write-protects external memory. In addition, the RESET output is guaranteed to remain logic low even with VCC as low as 1V. The applications of the LTC693CSW#TR are (1)critical μp power monitoring; (2)intelligent instruments; (3)battery-powered computers and controllers; (4)automotive systems.

Parametrics

LTC6079IGN#TR absolute maximum ratings: (1)VCC: – 0.3V to 6.0V; (2)VBATT: – 0.3V to 6.0V; (3)All Other Inputs: – 0.3V to (VOUT + 0.3V); (4)VCC: 200mA; (5)VBATT: 50mA; (6)GND: 20mA; (7)VOUT Output Current: Short-Circuit Protected; (8)Power Dissipation: 500mW; (9)Operating Temperature Range: 0°C to 70°C; (10)Storage Temperature Range: –65°C to 150°C; (11)Lead Temperature (Soldering, 10 sec.): 300°C.

Features

LTC6079IGN#TR features: (1)Guaranteed Reset Assertioat VCC = 1V; (2)1.5mA Maximum Supply Current; (3)Fast (35ns Max)Onboard Gating of RAM Chip Enable Signals; (4)SO-8 and S16 Packaging; (5)4.65V PrecisioVoltage Monitor; (6)Power OK/Reset Time Delay: 50ms, 200ms or Adjustable; (7)Minimum External Component Count; (8)1mA Maximum Standby Current; (9)Voltage Monitor for Power-Fail or Low-Battery Warning; (10)Thermal Limiting; (11)Performance Specified Over Temperature; (12)Superior Upgrade for MAX690 Family.

Diagrams

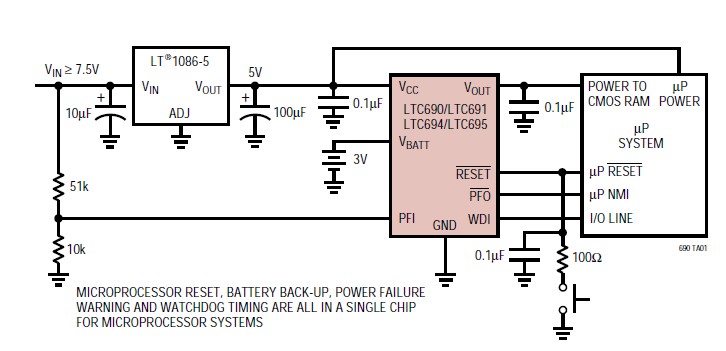

LTC6079IGN#TR pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

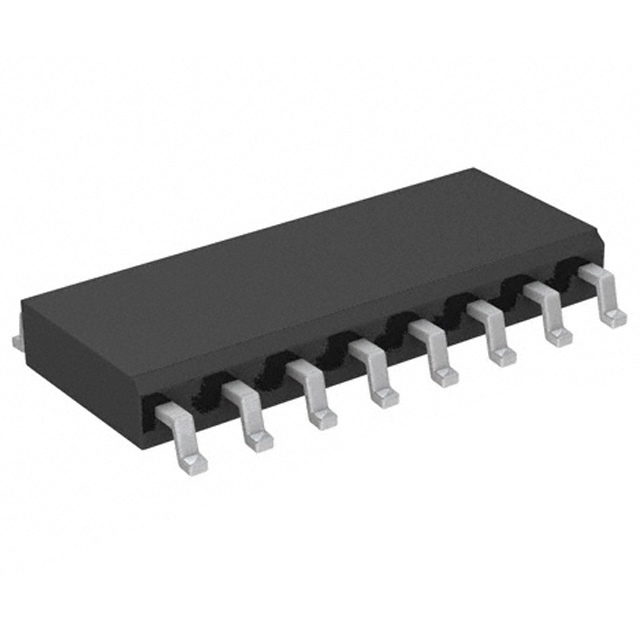

LTC693CSW#TR
LTC693CSW#TR


IC SUPERVISORY CIRC MPU 16SOIC

Data Sheet

0-2000: $2.52
LTC693CSW#TRPBF
LTC693CSW#TRPBF


IC MPU SUPERVISRY CIRCUIT 16SOIC

Data Sheet

0-1000: $2.52
