MC33272AP

Product Summary

The MC33272AP is a monolithic operational amplifier which is quality fabricated with innovative Bipolar design concepts. This dual and quad operational amplifier incorporates Bipolar inputs along with a patented Zip-R-Trim element for input offset voltage reduction. The MC33272AP exhibits low input offset voltage and high gain bandwidth product. Dual-doublet frequency compensation is used to increase the slew rate while maintaining low input noise characteristics. Its all NPN output stage exhibits no deadband crossover distortion, large output voltage swing, and an excellent phase and gain margin. It also provides a low open loop high frequency output impedance with symmetrical source and sink AC frequency performance. The MC33272AP is specified over -40℃ to +85℃ and is available in plastic DIP surface mount package.

Parametrics

MC33272AP absolute maximum ratings: (1)Supply Voltage VCC to VEE: +36 V; (2)Output Short Circuit Duration tSC: Indefinite; (3)Maximum Junction Temperature TJ: +150℃; (4)Storage Temperature Tstg: -60 to +150 ℃; (5)ESD Protection at Any Pin Human Body Model Vesd: 2000V; (6)ESD Protection at Any Pin Machine Model Vesd: 200V; (7)Operating Temperature Range TA: -40 to +85℃.

Features

MC33272AP features: (1)Pb-Free Packages are Available; (2)Input Offset Voltage Trimmed to 100 μV (Typ); (3)Low Input Bias Current: 300 nA; (4)Low Input Offset Current: 3.0 nA; (5)High Input Resistance: 16 MΩ; (6)Low Noise: 18 nV/ √Hz @ 1.0 kHz; (7)High Gain Bandwidth Product: 24 MHz @ 100 kHz; (8)High Slew Rate: 10 V/μs; (9)Power Bandwidth: 160 kHz; (10)Excellent Frequency Stability; (11)Unity Gain Stable: w/Capacitance Loads to 500 pF; (12)Large Output Voltage Swing: +14.1 V/ -14.6 V; (13)Low Total Harmonic Distortion: 0.003%; (14)Power Supply Drain Current: 2.15 mA per Amplifier; (15)Single or Split Supply Operation: +3.0 V to +36 V or ±1.5 V to ±18 V; (16)ESD Diodes Provide Added Protection to the Inputs; (17)NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes.

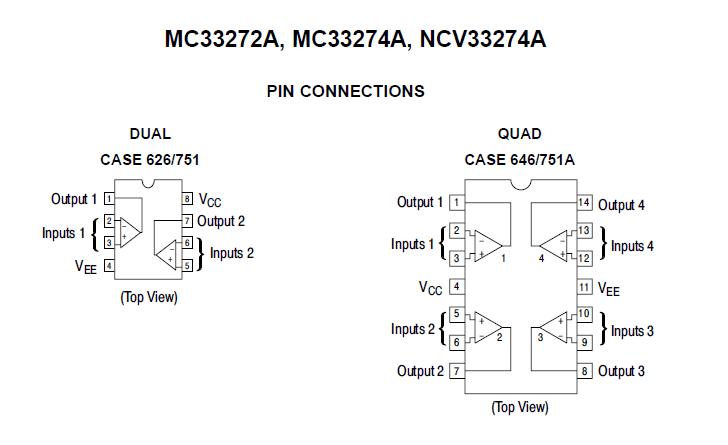

Diagrams
