Product Summary

The MIC2025-1YM is a high-side MOSFET switch optimized for general-purpose power distribution requiring circuit protection. The MIC2025-1YM is internally current limited and has thermal shutdown that protects the device and load. When a thermal shutdown fault occurs, the output is latched off until the faulty load is removed. Removing the load or toggling the enable input will reset the device output. The MIC2025-1YM employs soft-start circuitry that minimizes inrush current in applications where highly capacitive loads are employed. A fault status output flag is provided that is asserted during overcurrent and thermal shutdown conditions. The MIC2025-1YM is available in the 8-lead SOP.

Parametrics

MIC2025-1YM absolute maximum ratings: (1)Supply Voltage (VIN): –0.3V to 6V; (2)Fault Flag Voltage (VFLG): +6V; (3)Fault Flag Current (IFLG): 25mA; (4)Output Voltage (VOUT): +6V; (5)Output Current (IOUT): Internally Limited; (6)Enable Input (IEN): –0.3V to VIN +3V; (7)Storage Temperature (TS): –65℃ to +150℃.

Features

MIC2025-1YM features: (1)140mΩ maximum on-resistance; (2)2.7V to 5.5V operating range; (3)500mA minimum continuous output current; (4)Short-circuit protection with thermal shutdown; (5)Fault status flag with 3ms filter eliminates false assertions; (6)Undervoltage lockout; (7)Reverse current flow blocking (no "ody diode"); (8)Logic-compatible input; (9)Soft-start circuit; (10)Low quiescent current; (11)Pin-compatible.

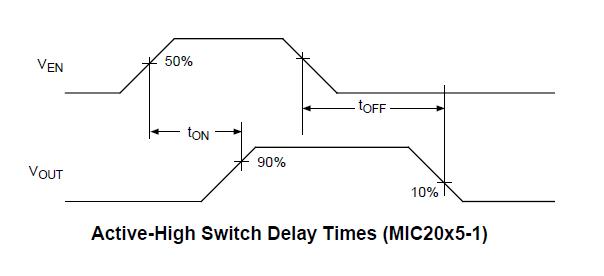

Diagrams

MIC2025-1YM block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MIC2025-1YM
MIC2025-1YM


IC SW DISTRIBUTION 1CHAN 8SOIC

Data Sheet

0-1: $0.77
1-25: $0.65
25-100: $0.52
100-250: $0.39
250-500: $0.36
MIC2025-1YM TR
MIC2025-1YM TR


IC DISTRIBUTION SW SGL 8-SOIC

Data Sheet

0-2500: $0.34
MIC2025-1YMM TR
MIC2025-1YMM TR


IC DISTRIBUTION SW SGL 8-MSOP

Data Sheet

0-2500: $0.38
MIC2025-1YMM
MIC2025-1YMM


IC DISTRIBUTION SW SGL 8-MSOP

Data Sheet

0-1: $0.75
1-25: $0.60
25-100: $0.45
100-250: $0.42
250-500: $0.41
