Product Summary
The MIC2040-1BMM is a high side MOSFET switch optimized for general purpose power distribution applications that require circuit protection. The MIC2040-1BMM switches up to 5.5V and as low as 0.8V while offering both programmable current limiting and thermal shutdown to protect the device and the load. A fault status output is provided in order to detect overcurrent and thermal shutdown fault conditions. The MIC2040-1BMM employs soft start circuitry to minimize the inrush current in applications that employ highly capacitive loads. Additionally, the MIC2040-1BMM is suited for multi-port USB applications to satisfy upstream/downstream power requirements. The output is reset by removing or reducing the load.
Parametrics
MIC2040-1BMM absolute maximum ratings: (1)VIN and VBIAS: 6V; (2)/FAULT, PWRGD Output Voltage: 6V; (3)/FAULT, PWRGD Output Current: 25mA; (4)Junction Temperature Range: Internally Limited; (5)ESD Rating Human Body Model: 2kV; (6)ESD Rating Machine Model: 200V.
Features
MIC2040-1BMM features: (1)75mΩ max. on-resistance; (2)0.8V to 5.5V operating range; (3)Adjustable current limit; (4)Up to 1.5A continuous output current; (5)Short circuit protection with thermal shutdown; (6)Fault status flag; (7)Undervoltage lockout; (8)Output MOSFET reverse current flow block when disabled; (9)Very fast reaction to short-circuits; (10)Low quiescent current.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MIC2040-1BMM |
|

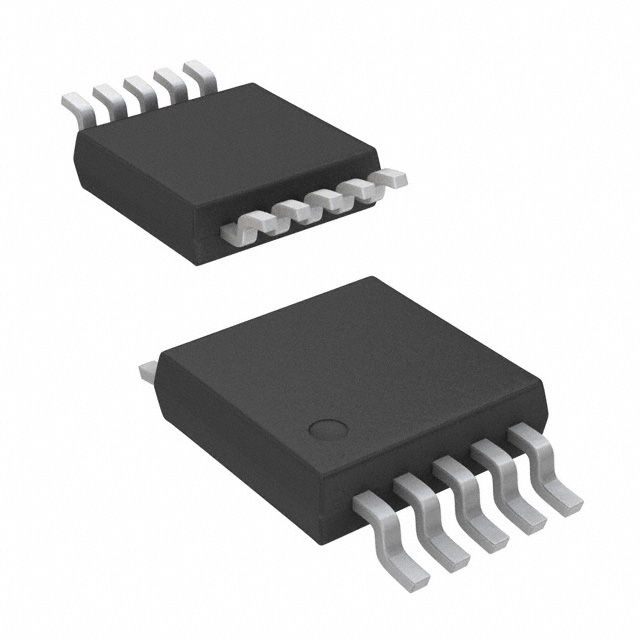

IC DISTRIBUTION SW SGL 10-MSOP |
Data Sheet |
Negotiable |
|
||||
|
MIC2040-1BMM TR |
|
IC DISTRIBUTION SW SGL 10-MSOP |
Data Sheet |
Negotiable |
|
||||
