Product Summary

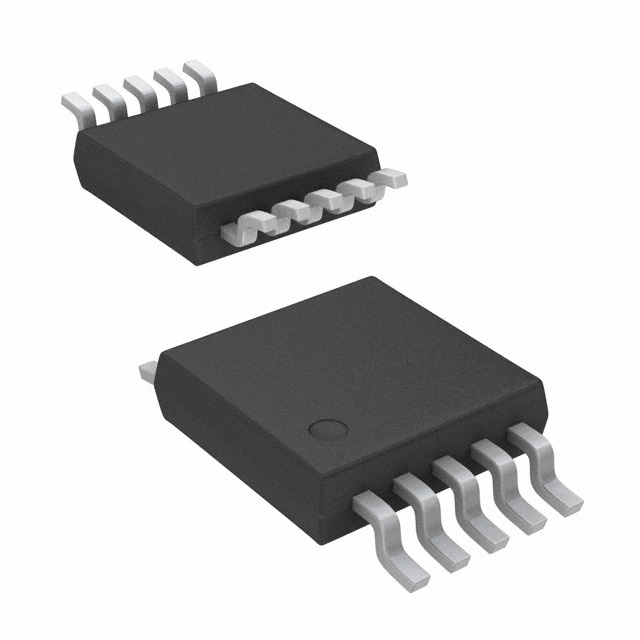

The MIC2169ABMM is a high-efficiency, simple to use 500kHz PWM synchronous buck control IC housed in a small MSOP-10 package. It allows compact DC/DC solutions with a minimal external component count and cost. The MIC2169ABMM operates using a 3V to 14.5V input, without the need for any additional bias voltage. The output voltage can be precisely regulated down to 0.8V. The adaptive all N-Channel MOSFET drive scheme allows effi ciencies, over 95%, across a wide load range. The MIC2169ABMM senses current across the high-side N-Channel MOSFET, eliminating the need for an expensive and lossy current-sense resistor. Current limit accuracy is maintained via a positive temperature coeffi cient that tracks the increasing RDS(ON) of the external MOSFET. Additional cost and space are saved by the internal in-rush-current limiting and digital soft-start. The MIC2169ABMM is available in a 10-pin MSOP package, with a wide junction operating range of –40℃ to +125℃.
Parametrics
MIC2169ABMM absolut maximum ratings: (1)Supply Voltage (VIN): 15.5V; (2)Booststrapped Voltage (VBST): VIN +5V; (3)Junction Temperature (TJ): –40℃ ≤ TJ ≤ +125℃; (4)Storage Temperature (TS): –65℃ to +150 ℃.
Features
MIC2169ABMM features: (1)3V to 14.5V input voltage range; (2)Adjustable output voltage down to 0.8V; (3)Up to 95% effi ciency; (4)500kHz PWM operation; (5)Adjustable current limit senses high-side N-Channel MOSFET current; (6)No external current-sense resistor; (7)Adaptive gate drive increases effi ciency; (8)Fast transient response; (9)Externally compensated; (10)Overvoltage protection protects the load in fault conditions; (11)Dual mode current limit speeds up recovery time; (12)Hiccup mode short-circuit protection; (13)Small size MSOP 10-lead package.

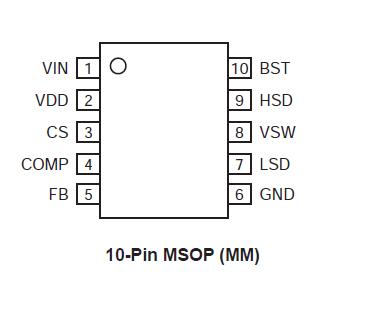

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MIC2169ABMM |
|
IC REG CTRLR DIVIDER PWM 10-MSOP |
Data Sheet |
Negotiable |
|
||||
|
MIC2169ABMM TR |
|
IC REG CTRLR DIVIDER PWM 10-MSOP |
Data Sheet |
Negotiable |
|
||||
