MIC2544-2YM

integrated high-side power switch, 120mΩ, 1.5A, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: MIC2544-2YM

Brand:: Master Instrument Corporation - MIC | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:MIC2544-2YM
US $0.15 - 2.40
AT45DB161B-TI

US $0.90 - 2.00 / Piece
(0) Remove
RTL8102EL

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

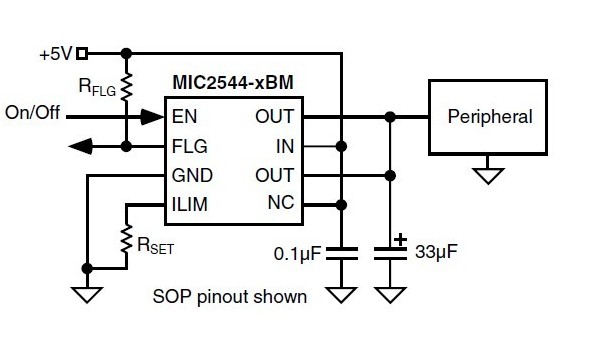

The MIC2544-2YM is an integrated high-side power switch optimized for low loss dc power switching and other power management applications, including Advanced Configuration and Power Interface (ACPI). The MIC2544-2YM is a cost-effective, highly integrated solution that requires few external components to satisfy USB and ACPI requirements. Load current management features include a precision resistor programmable output current-limit and a soft-start circuit which minimizes inrush current when the switch is enabled. Thermal shutdown, along with current-limit, protects the switch and the attached device. The MIC2544-2YM open-drain flag output is used to indicate current-limiting or thermal shutdown to a local controller. The enable signal is compatible with both 3V and 5V logic, and is also used as the thermal shutdown latch reset for the MIC2548. The MIC2544-2YM is available in active-high and active-low enable versions in the 8-pin SOP (small-outline package) and 8-pin MSOP (micro-small-outline package).

Parametrics

MIC2544-2YM absolute maximum ratings: (1)Supply Voltage (VIN):+6.0V; (2)Output Voltage (VOUT): +6.0V; (3)Output Current (IOUT): Internally Limited; (4)Enable Input (VEN): –0.3V to VIN+0.3V; (5)Fault Flag Voltage (VFLG): +6.0V; (6)Fault Flag Current (IFLG): 50mA; (7)Storage Temperature (TS): -65℃ to +150℃; (8)Junction Temperature (TJ): Internally Limited; (9)Lead Temperature (soldering 5 sec.): 260℃; (10)ESD Rating: 2kV.

Features

MIC2544-2YM features: (1)2.7V to 5.5V input; (2)Adjustable current limit up to 1.5A; (3)Reverse current flow blocking (no body diode); (4)75μA typical on-state supply current; (5)1μA typical off-state supply current; (6)120mΩ maximum on-resistance; (7)Open-drain fault flag; (8)Thermal shutdown; (9)Thermal shutdown output latch (MIC2548); (10)2ms (slow) turn-on and fast turnoff; (11)Available with active-high or active-low enable.
