Product Summary

The MIC29300-3.3WT is a high current, high accuracy, low dropout voltage regulator. Using Micrel proprietary Super eta PNP process with a PNP pass element, the MIC29300-3.3WT features 350mV to 425mV (full load)typical dropout voltages and very low ground current. Designed for high current loads, these devices also find applications in lower current, extremely low dropout critical systems, where their tiny dropout voltage and ground current values are important attributes. The MIC29300-3.3WT applications are: (1)Battery powered equipment; (2)High efficiency Green computer systems; (3)Automotive electronics; (4)High efficiency linear lower supplies; (5)High efficiency lost regulator for switching supply.

Parametrics

MIC29300-3.3WT absolute maximum ratings: (1)Input Supply Voltage (VIN)(1): -20V to +60V; (2)Enable Input Voltage (VEN): -0.3V to VIN; (3)Lead Temperature (soldering, 5sec.): 260℃; (4)Power Dissipation : Internally Limited; (5)Storage Temperature Range : -65℃ to +150℃.

Features

MIC29300-3.3WT features: (1)Low-dropout voltage; (2)Low ground current; (3)Accurate 1% guaranteed tolerance; (4)Extremely fast transient response; (5)Reverse-battery and Load Dump protection; (6)Zero-current shutdown mode (5-pin versions); (7)Error flag signals output out-of-regulation (5-pin versions); (8)Also characterized for smaller loads with industryleading performance specifications; (9)Fixed voltage and adjustable versions.

Diagrams

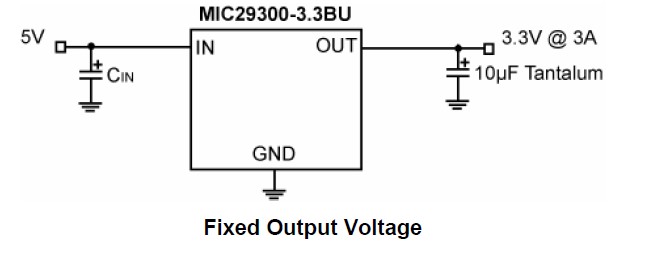

 MIC29300-3.3WT pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MIC29300-3.3WT
MIC29300-3.3WT

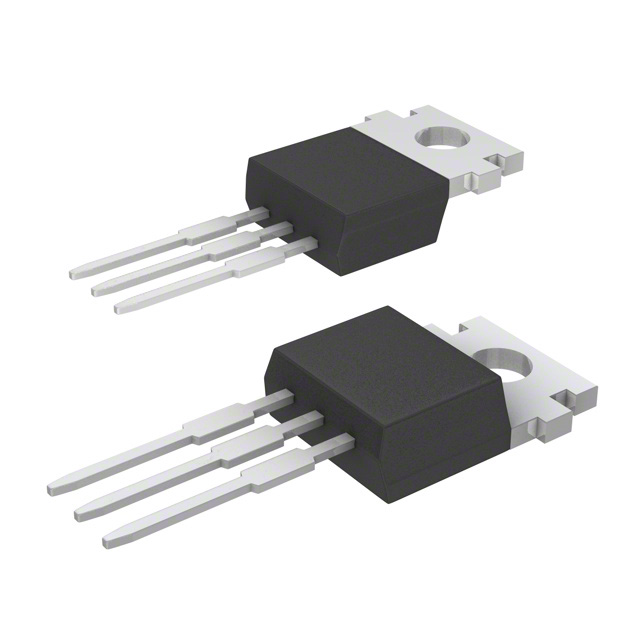

IC REG LDO 3.3V 3A TO220-3

Data Sheet

0-1: $1.99
1-25: $1.59
25-100: $1.23
100-250: $1.17
250-500: $1.15
