Product Summary
The MIC4827BMM is a low input voltage, 180VPP output voltage, EL driver. Its applications include LCD panel backlight, Cellular phones, PDAs, Pagers, Calculators, Remote controls, Portable phones. It operates from an input voltage range of 1.8V to 5.5V, making it suitable for 1-cell Li Ion and 2- or 3-cell alkaline/NiCad/NiMH battery applications.
Parametrics
MIC4827BMM absolute maximum ratings: (1)supply voltage: -0.5 to 6V; (2)output voltage: -0.5 to 100V; (3)frequency control voltage: -0.5 to VDD+0.3V; (4)Storage temperature: -65 to 150℃; (5)power dissipation: 200mW.
Features
MIC4827BMM features: (1)1.8V to 5.5V DC input voltage; (2)180V PP regulated AC output waveform; (3)Independently adjustable EL lamp frequency; (4)Independently adjustable boost converter frequency; (5)0.1µA shutdown current.

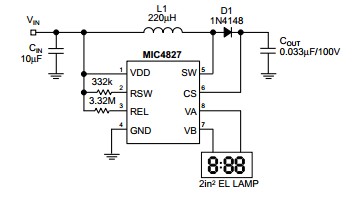

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MIC4827BMM |
|

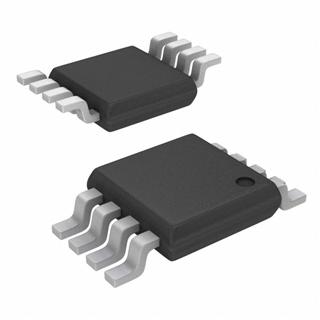

IC EL DRIVER 180VPP OUT 8-MSOP |
Data Sheet |
Negotiable |
|
||||
|
MIC4827BMM TR |
|
IC EL DRIVER 180VPP OUT 8-MSOP |
Data Sheet |
Negotiable |
|
||||
