Product Summary
The MIC5209-3.3YM is an efficient linear voltage regulator with very low dropout voltage, typically 10mV at light loads and less than 500mV at full load, with better than 1% output voltage accuracy. Designed especially for hand-held, battery-powered devices, the MIC5209-3.3YM features low ground current to help prolong battery life. An enable/shutdown pin on SO-8 and TO-263- 5 versions can further improve battery life with near-zero shutdown current. Key features include reversed-battery protection, current limiting, overtemperature shutdown, ultra-low-noise capability (SO-8 and TO-263-5 versions), and availability in thermally effi cient packaging. The MIC5209-3.3YM is available in adjustable or fixed output voltages. The MIC5209-3.3YM applications are: (1)Pentium II Slot 1 and Slot 2 support circuits; (2)Laptop, notebook, and palmtop computers; (3)Cellular telephones; (4)Consumer and personal electronics; (5)SMPS post-regulator/dc-to-dc modules; (6)High-effi ciency linear power supplies.
Parametrics
MIC5209-3.3YM absolute maximum ratings: (1)Supply Input Voltage (VIN): –20V to +20V; (2)Power Dissipation (PD): Internally Limited(3); (3)Junction Temperature (TJ)all except 1.8V: –40℃ to +125℃, 1.8V only : 0℃ to +125℃; (4)Lead Temperature (soldering, 5 sec.): 260℃; (5)Storage Temperature (TS): –65℃ to +150℃.
Features
MIC5209-3.3YM features: (1)Low 500mV maximum dropout voltage at full load; (2)Extremely tight load and line regulation; (3)Thermally-efficient surface-mount package; (4)Low temperature coeffi cient; (5)Current and thermal limiting; (6)Reversed-battery protection; (7)No-load stability; (8)1% output accuracy; (9)Ultra-low-noise capability in SO-8 and TO-263-5; (9)Guaranteed 500mA output over the full operating temperature range.

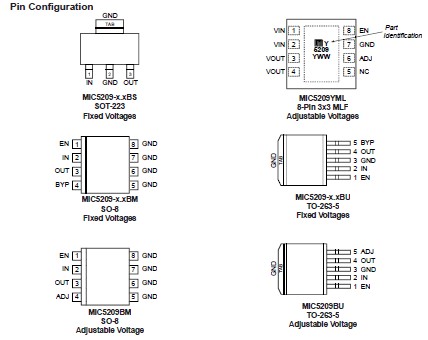

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MIC5209-3.3YM |
|
IC REG LDO 3.3V .5A 8SOIC |
Data Sheet |
|
|
||||||||||||||
|
MIC5209-3.3YM TR |
|
IC REG LDO 3.3V .5A 8-SOIC |
Data Sheet |
|
|
||||||||||||||
