Product Summary

The MIC5236YMM is a low quiescent current, μCap low-dropout regulator. With a maximum operating input voltage of 30V and a quiescent current of 20uA, it is ideal for supplying keep-alive power in systems with high-voltage batteries. Capable of 150mA output, the MIC5236YMM has a dropout voltage of only 300mV. It can also survive an input transient of －20V to +60V. The MIC5236YMM applications are: (1)Keep alive supply in notebook and portable personal computers; (2)Logic supply from high voltage batteries; (3)Automotive electronics; (4)Battery powered systems.

Parametrics

MIC5236YMM absolute maximum ratings: (1)Supply Voltage (VIN), Note 3 : －20V to +60V; (2)Power Dissipation (PD), Note 4 : Internally Limited; (3)Junction Temperature (TJ): +150℃; (4)Storage Temperature (TS): －65℃ to +150℃; (5)Lead Temperature (soldering, 5 sec.): 260℃.

Features

MIC5236YMM features: (1)Stable with ceramic or tantalum output capacitor; (2)Load dump protection: －20V to +60V input transient survivability; (3)Logic compatible enable input; (4)Low output flag indicator; (5)Overcurrent protection; (6)Thermal shutdown; (7)Reverse-leakage protection; (8)Reverse-battery protection; (9)High-power SOIC-8 and MSOP-8.

Diagrams

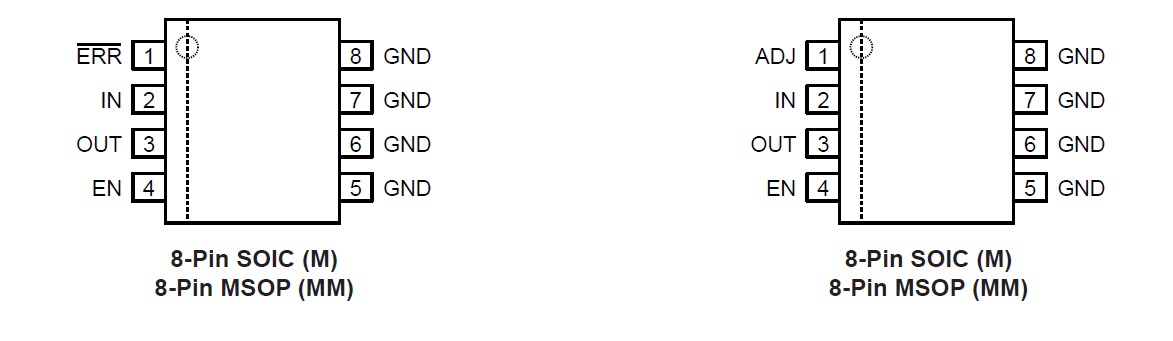

MIC5236YMM pin connection
